DGAA Parts

$0.00
In stock
Product Details
UPC: 0
Brand: no

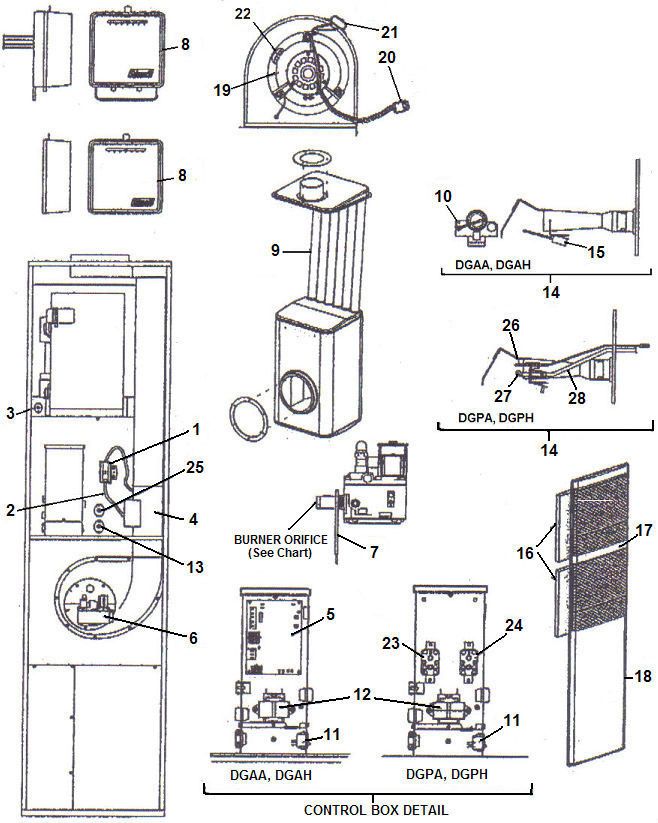

# DESCRIPTION DGAA056BDTB DGAA070BDTB DGAA077BDTB DGAA090BDTB Link
1
Switch - Pressure S1-02541003000 S1-02541003000 S1-02541003000 S1-02541003000 Click Here
Switch - Pressure S1-32435972000 S1-32435972000 S1-32435972000 S1-32435972000 Click Here
2 Tubing - Silicone (2' Reg'd) S1-02812499000 S1-02812499000 S1-02812499000 S1-02812499000 Click Here
3 Limit Switch - Manual
(Upper)
S1-02535358000 S1-02535358000 S1-02535358000 S1-02535358000 Click Here
4 Assembly - Booster
(w/Motor) WSL
S1-37319801820 S1-37319801820 S1-37319801820 S1-37319801820 Click Here
5 Control Board - Integrated S1-03101932002 S1-03101932002 S1-03101932002 S1-03101932002 Click Here
6 Valve - Gas S1-02543267000 S1-02543267000 S1-02543267000 S1-02543267000 Click Here
7 Bracket - Valve S1-07319801064 S1-07319801064 S1-07319801064 S1-07319801064 Click Here
8 Thermostat - Heat/Cool Accessory Accessory Accessory Accessory
9 Exchanger - Heat
(w/Gaskets)
S1-37319804651 S1-37323792001 S1-37323792002 S1-37323792003 Click Here
10 Sensor - Flame S1-02535354000 S1-02535354000 S1-02535354000 S1-02535354000 Click Here
11 Switch - System S1-7681-3301 S1-7681-3301 S1-7681-3301 S1-7681-3301 Click Here
12 Transformer - (115-24V,
40 VA)
S1-2940A3541 S1-2940A3541 S1-2940A3541 S1-2940A3541 Click Here
13 Switch - Limit S1-02535380000 S1-02535380000 S1-02535381000 S1-02535381000 Click Here
14 Burner Assembly - Auto
Ignition (Includes items
10 & 15)
S1-37319801403 S1-37319801403 S1-37319801403 S1-37319801403 Click Here
15 Ignitor - Hot Surface S1-02541021000 S1-02541021000 S1-02541021000 S1-02541021000 Click Here
16 Filter - (2 Req'd)(16x20x1) S1-1214-2511 S1-1214-2511 S1-1214-2511 S1-1214-2511 Click Here
17 Panel - Door (Upper) Accessory Accessory Accessory Accessory
18 Panel - Door (Lower, Tall) 7900-7611 7900-7611 7900-7611 7900-7611 Click Here
19
Motor - (old) S1-1468-220P S1-1468-220P S1-1468-220P S1-1468-220P Click Here
Motor - (new) S1-02435603000 S1-02435603000 S1-02435603000 S1-02435603000 Click Here
20 Assembly - Motor Mount S1-37319806100 S1-37319806100 S1-37319806100 S1-37319806100 Click Here
21 Plug - Connector S1-02521192000 S1-02521192000 S1-02521192000 S1-02521192000 Click Here
22
Capacitor - Run (old) S1-02420063000 S1-02420063000 S1-02420063000 S1-02420063000 Click Here
Capacitor - Run (new) S1-02435602000 S1-02435602000 S1-02435602000 S1-02435602000 Click Here
23 Wheel - Blower S1-02619654003 S1-02619654003 S1-02619654003 S1-02619654003 Click Here
24* Top - Casing S1-07319801342 S1-07319801342 S1-07319801342 S1-07319801342 Click Here
25* Diagram - Wiring 155887 155887 155887 155887 Click Here
26* Strike - Door S1-02118364000 S1-02118364000 S1-02118364000 S1-02118364000 Click Here
27* Latch - Door S1-02118365000 S1-02118365000 S1-02118365000 S1-02118365000 Click Here
28* Housing - Blower S1-37323864001 S1-37323864001 S1-37323864001 S1-37323864001 Click Here
29* Gasket - Combustion Air
Box
S1-01006900005 S1-01006900005 S1-01006900005 S1-01006900005 Click Here
30* Gasket - Burner S1-01006742000 S1-01006742000 S1-01006742000 S1-01006742000 Click Here
31* Gasket - Booster Assembly S1-01006900015 S1-01006900015 S1-01006900015 S1-01006900015 Click Here
32* Gasket - Heat Exchanger S1-01006900001 S1-01006900001 S1-01006900001 S1-01006900001 Click Here
