DGAD/DGAE/DGAF (Style L) Parts

Store / Heating & Cooling / Furnace Components / Nordyne/Miller/Intertherm / M1GH Series
$0.00
In stock
Product Details
UPC: 0
Brand: no

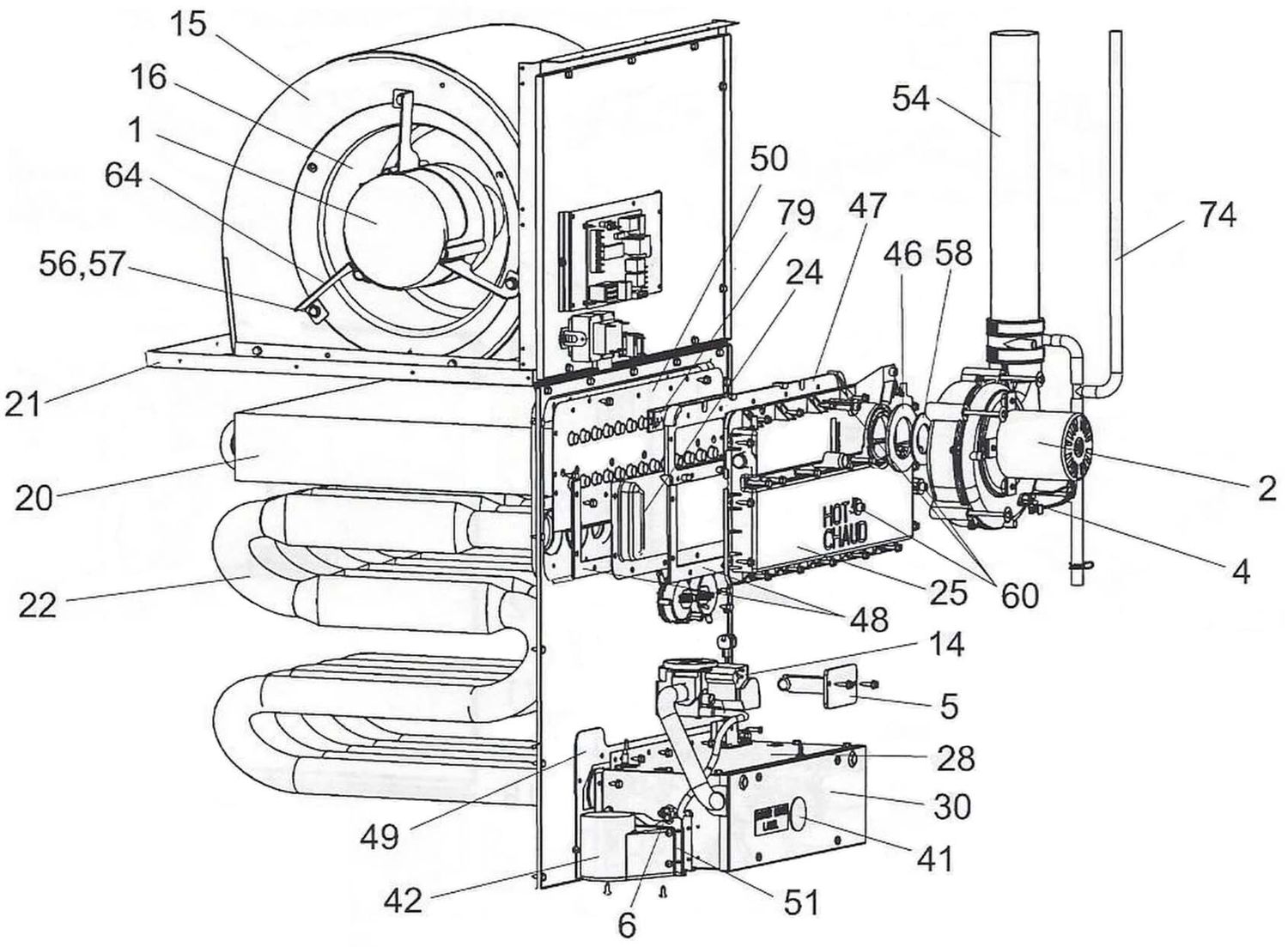

# DESCRIPTION DGAD060CDL DGAE080CDL DGAF100CDL Link
1 Motor - Direct Drive Blower S1-02435647000 S1-02432055000 S1-02432056000 Click Here
2 Motor - Inducer Ass'y S1-02434558000 S1-02434558000 S1-02434558000 Click Here
3
 Capacitor - Run (10MFD/370V) S1-02420046000 S1-02420046000 --- Click Here
Capacitor - Run (15MFD/370V) --- --- S1-02420044000 Click Here
4 Switch - Limit (Inducer) S1-02538737000 S1-02538737000 S1-02538737000 Click Here
5 Limit - Temperature (Primary) S1-02529041004 S1-02529041004 S1-02529041011 Click Here
6 Limit - Flame Roll-Out S1-02527792001 S1-02527792001 S1-02527792001 Click Here
7 Control - Furnace Module S1-03109166000 S1-03109166000 S1-03109166000 Click Here
8 Switch - Rocker (Not Shown) S1-7681-3301 S1-7681-3301 S1-7681-3301 Click Here
9 Ignitor S1-0532625000 S1-0532625000 S1-0532625000 Click Here
10 Sensor - Flame S1-02537499000 S1-02537499000 S1-02537499000 Click Here
11 Switch - Pressure S1-02434612000 S1-02434612000 S1-02434612000 Click Here
12 Switch - Door S1-02427640000 S1-02427640000 S1-02427640000 Click Here
13 Transformer S1-02530889000 S1-02530889000 S1-02530889000 Click Here
14 Valve - Gas S1-02538979000 S1-02538979000 S1-02538979000 Click Here
15 Housing - Blower S1-37323724001 S1-37323746001 S1-37323747001 Click Here
16 Wheel - Blower S1-026196554009 S1-026196554009 S1-026196554009 Click Here
17 Panel - Blower Cover S1-07319812370 S1-07319812370 S1-07319812370 Click Here
18 Bracket - Condensate Trap S1-07319811001 S1-07319811001 S1-07319811001 Click Here
19 Burner - Main Gas S1-02920482000 S1-02920482000 S1-02920482000 Click Here
20 Coil - Condensing S1-37319812801 S1-37319812801 S1-37319812801 Click Here
21 Shelf - Blower S1-07319812222 S1-07319816222 S1-07319816242 Click Here
22 Heat Exchanger - Ass'y S1-37319812611 S1-37319812611 S1-37319812612 Click Here
23 Manifold - Gas S1-02922253030 S1-02922253040 S1-02922253050 Click Here
24 Shield - Pan S1-07319812570 S1-07319816570 S1-07319816570 Click Here
25 Pan - Condensate S1-02815151000 S1-02815152000 S1-02815152000 Click Here
26 Panel - Lower Access S1-07319863032 S1-07319863033 S1-07319863033 Click Here
27 Panel - Upper Access S1-07319812121 S1-07319816121 S1-07319816121 Click Here
28 Wrapper - Burner Box S1-07319811730 S1-07319811740 S1-07319811750 Click Here
29 Channel - Toe Plate S1-07319863042 S1-07319863043 S1-07319863043 Click Here
30 Cover - Gas Control S1-37322155002 S1-37322155003 S1-37322155004 Click Here
31 Panel - Bottom S1-07319812170 S1-07319816170 S1-07319816170 Click Here
32 Panel - Top S1-07319863052 S1-07319863053 S1-07319863053 Click Here
33 Support - Burner S1-07319811330 S1-07319811340 S1-07319811350 Click Here
34 Wrapper - Cabinet S1-37319863002 S1-37319863003 S1-37319863005 Click Here
35
36 Plate - Diffuser S1-07319811023 S1-07319811024 S1-07319811025 Click Here
37 Bracket - Igniter S1-07317403000 S1-07317403000 S1-07317403000 Click Here
38 Bracket - Door Switch S1-07319811380 S1-07319811380 S1-07319811380 Click Here
39 Bracket - Door S1-07319863062 S1-07319863062 S1-07319863062 Click Here
40 Bottom Panel - Burner Box S1-07319811130 S1-07319811140 S1-07319811150 Click Here
41 Plug - Window Clear - 1.5 S1-02537005000 S1-02537005000 S1-02537005000 Click Here
42 Combustion Air Transition S1-02815154000 S1-02815154000 S1-02815154000 Click Here
43 Tubing - Silicone
(Gray, .188 ID, 2.83 ft. Req'd)		 S1-02812499000 S1-02812499000 S1-02812499000 Click Here
44 Tubing - Silicone (Preformed) S1-02815170000 S1-02815170000 S1-02815170000 Click Here
45 Tubing - Silicone
(Gray, .188 ID, 1.25 ft. Req'd)		 S1-02812499000 S1-02812499000 S1-02812499000 Click Here
46 Gasket - Combusdtion Blower S1-02815177000 S1-02815177000 S1-02815177000 Click Here
47 Gasket - Condensate Pan S1-02814759002 S1-02814759003 S1-02814759003 Click Here
48 Gasket - Upper Condensate Pan
(2 Req'd)		 S1-02814773000 S1-02814774000 S1-02814774000 Click Here
49 Gasket - Gas Controls S1-02815222000 S1-02815223000 S1-02815224000 Click Here
50 Gasket - Condensing Coil S1-02814760002 S1-02814760003 S1-02814760003 Click Here
51 Gasket - Combustion Air Transition S1-02815155000 S1-02815155000 S1-02815155000 Click Here
52 Gasket - Mounting Brkt (Burner Box) S1-02813256000 S1-02813256000 S1-02813256000 Click Here
53 Combustion Air Intake Assembly S1-02815167000 S1-02815167000 S1-02815167000 Click Here
54 Vent Pipe - (2" x 15.25" Lg.) S1-02815166000 S1-02815166000 S1-02815166000 Click Here
55 Rubber Sleeve - (2.5" x 4" Lg) S1-02815162000 S1-02815162000 S1-02815162000 Click Here
56 Grommet - Motor (3 Req'd) S1-02814740000 S1-02814740000 S1-02814740000 Click Here
57 Ferrule - (3 Req'd) S1-02320541000 S1-02320541000 S1-02320541000 Click Here
58 Restrictor - Combustion Blwr S1-02815172000 S1-02815174000 --- Click Here
59 Spring - Door S1-02922119000 S1-02922119000 S1-02922119000 Click Here
60 Washer - Flat Fiberglass (2 Req'd) S1-02814768000 S1-02814768000 S1-02814768000 Click Here
61 Handle - Door (3 Req'd) S1-02814886000 S1-02814886000 S1-02814886000 Click Here
62 Clamp - Hose (2 Req'd) S1-02118390000 S1-02118390000 S1-02118390000 Click Here
63 Harness - Main Wiring S1-02540969000 S1-02540969000 S1-02540969000 Click Here
64 Mount - Motor (1 Pc.) S1-07319831001 S1-07319831001 S1-07319831001 Click Here
65
 Orifice - Burner (Natural #45) S1-02921182045 S1-02921182045 S1-02921182045 Click Here
Orifice - Burner (LP #55) S1-02921182055 S1-02921182055 S1-02921182055 Click Here
66 Trap - Condensate S1-02814762000 S1-02814762000 S1-02814762000 Click Here
67 Wiring Diagram 035-19941-001 035-19941-001 035-19941-001 Click Here
68 Elbow - 2" 45 Deg Street S1-02815161000 S1-02815161000 S1-02815161000 Click Here
69 Drain Tube - Condensate Trap S1-02813309004 S1-02813309004 S1-02813309004 Click Here
70 Drain Tube - Combustion Blower S1-02815168000 S1-02815168000 S1-02815168000 Click Here
71 Drain Tube - Condensate Pan S1-02815156000 S1-02815156000 S1-02815156000 Click Here
72 Drain Tube - Straight 21" Lg. S1-02815169001 S1-02815169001 S1-02815169001 Click Here
73 Drain Tube - Rain Gutter S1-02815171000 S1-02815171000 S1-02815171000 Click Here
74 Drain Hose - Assembly S1-02815176000 S1-02815176000 S1-02815176000 Click Here
75 LockNut - Conduit (1/2") S1-02532683000 S1-02532683000 S1-02532683000 Click Here
76 Adapter - Insert S1-02531808000 S1-02531808000 S1-02531808000 Click Here
77 Bushing - Threaded S1-02531807000 S1-02531807000 S1-02531807000 Click Here
78 Drain Tube - Vent Pipe S1-02815158000 S1-02815158000 S1-02815158000 Click Here
79 Tube - Restrictor S1-02815206000 S1-02815206000 S1-02815206000 Click Here
80 Grommet - Manifold S1-02812465000 S1-02812465000 S1-02812465000 Click Here
81 Vent Pipe - Assembly S1-02815159000 S1-02815159000 S1-02815159000 Click Here
82 Drain Tube - Vent Pipe S1-02815158000 S1-02815158000 S1-02815158000 Click Here
83 Logo/Bezel Plate - Assembly S1-37323701001 S1-37323701001 S1-37323701001 Click Here
