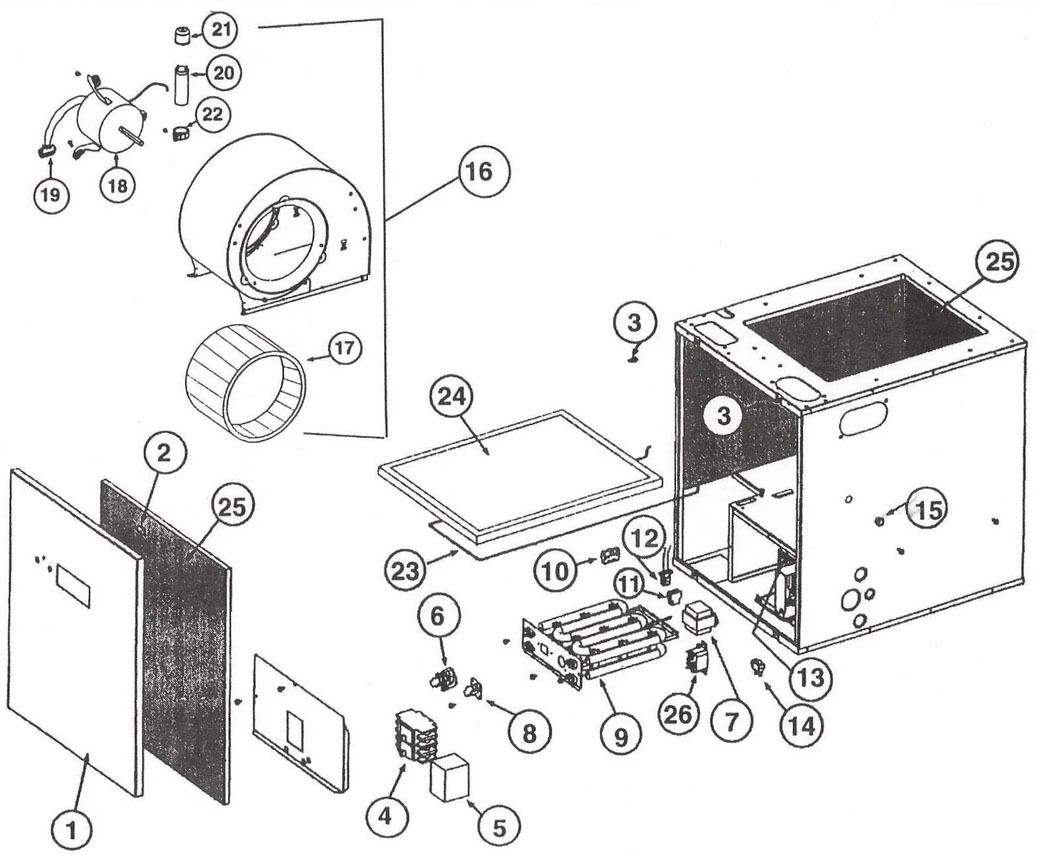

E1E Parts
| # | DESCRIPTION | 10 | 12 | 15 | 17 | 20 | 23 | MFG # | Link |
| 1 | Panel Door - Gray | 1 | 1 | 1 | 1 | 1 | 1 | 902817 | Click Here |
| 2 | Receptacle - Latch (2) | 2 | 2 | 2 | 2 | 2 | 2 | 668420 | Click Here |
| 3 | Strike - Latch | 4 | 4 | 4 | 4 | 4 | 4 | 668905 | Click Here |
| 4 | Circuit Breaker- 60A, 2 Pole | 1 | 2 | 2 | 2 | 2 | 2 | 632249 | Click Here |
| 5 | Adapter Kit- Single circuit (Optional on all but 012) |
- | 1 | - | - | - | - | 913874 | Click Here |
| 6
|
Sequencer - 2 Pole Aux Timing | - | - | - | - | 1 | 1 | 621381 | Click Here |
| Sequencer - 1 Pole Aux Timing | - | - | 1 | 1 | - | - | 621382 | Click Here | |
| Sequencer - 2 Pole Blower Timing | 1 | 1 | 1 | 1 | 1 | 1 | 621596 | Click Here | |
| 7 | Transformer - 30VA | 1 | 1 | 1 | 1 | 1 | 1 | 621592 | Click Here |
| 8
|
Limit - 2-Pole | 1 | 1 | 1 | 1 | 2 | 2 | 626428 | Click Here |
| Limit - 1-Pole | - | - | 1 | 1 | - | - | 626429 | Click Here | |
| 9
|
Element Assembly - 5.0 KW @240V | - | - | 1b* | - | - | - | 902818 | Click Here |
| Element Assembly - 5.4 KW @240V | - | - | - | 1b* | - | - | 902820 | Click Here | |
| Element Assembly - 10.0 KW @240V | 1t* | - | 1t* | - | 2 | 1b* | 902821 | Click Here | |
| Element Assembly - 10.8 KW @240V | - | - | - | 1t* | - | - | 902823 | Click Here | |
| Element Assembly - 11.6 KW @240V | - | 1t* | - | - | - | 1t* | 902824 | Click Here | |
| 10 | Connector - Cap 6-Pin Inline | 1 | 1 | 1 | 1 | 1 | 1 | 632275 | Click Here |
| 11 | Connector - Cap 6-Pin Matrix | 1 | 1 | 1 | 1 | 1 | 1 | 631728 | Click Here |
| 12 | Connector - Plug 6-Pin Matrix | 1 | 1 | 1 | 1 | 1 | 1 | 631724 | Click Here |
| 13 | Lug - Ground | 1 | 1 | 1 | 1 | 1 | 1 | 632235 | Click Here |
| 14 | Switch - SPDT ("ON/"AUTO) | 1 | 1 | 1 | 1 | 1 | 1 | 631677 | Click Here |
| 15 | Bushing | 1 | 1 | 1 | 1 | 1 | 1 | 631781 | Click Here |
| 16
|
Blower - 2-Speed (USE p/n 497750) | 1 | 1 | 1 | 1 | 1 | 1 | 497470 | Click Here |
| Blower - 2-Speed (Incl. #17-22); 10 x 7 Wheel |
1 | 1 | 1 | 1 | 1 | 1 | 467750 | Click Here | |
| Blower - Multi-Speed/240v (incl. #17-22); optional in E1EH; standard in E1EB |
1 | 1 | 1 | 1 | 1 | 1 | 902805 | Click Here | |
| 17 | Wheel - Blower 10 x 7 | 1 | 1 | 1 | 1 | 1 | 1 | 667252 | Click Here |
| 18
|
Motor - 1/4HP 2-Sp. (AO Smith p/n F42C01A78) 9 x 7 |
1 | 1 | 1 | 1 | 1 | 1 | 902512 | Click Here |
| Motor - 1/4HP 3-Sp. (GE p/n 5KCP39HGR272S) 10 x 7 |
1 | 1 | 1 | 1 | 1 | 1 | 902890 | Click Here | |
| Motor - 1/4HP 2-Sp. (AO Smith p/n F42C42A78) 10 x 7 |
1 | 1 | 1 | 1 | 1 | 1 | 902889 | Click Here | |
| Motor - 1/3HP used in 902805 (p/n 620810) 10 x 7 |
1 | 1 | 1 | 1 | 1 | 1 | 621642 | Click Here | |
| 19 | Connector - Plug 6-Pin Inline | 1 | 1 | 1 | 1 | 1 | 1 | 632274 | Click Here |
| 20
|
Capacitor - 7.5 MFD 370v | 1 | 1 | 1 | 1 | 1 | 1 | 621434 | Click Here |
| Capacitor - 10.0 MFD 370v (optional) | - | - | - | - | - | - | 621435 | Click Here | |
| 21 | Boot - Capacitor | 1 | 1 | 1 | 1 | 1 | 1 | 632232 | Click Here |
| 22 | Strap - Capacitor | 1 | 1 | 1 | 1 | 1 | 1 | 606228 | Click Here |
| 23 | Retainer - Filter | 1 | 1 | 1 | 1 | 1 | 1 | 669031 | Click Here |
| 24 | Filter | 1 | 1 | 1 | 1 | 1 | 1 | 668934 | Click Here |
| 25 | Insulation Kit - (optional in E1EH; standard in E1EB) |
1 | 1 | 1 | 1 | 1 | 1 | 902807 | Click Here |
| 26 | Blower Relay - used in E1EB only | 1 | 1 | 1 | 1 | 1 | 1 | 620537 | Click Here |
| 27 | Circuit Breaker Closeoff - (not shown) | 2 | - | - | - | - | - | 632229 | Click Here |
