E2E Parts

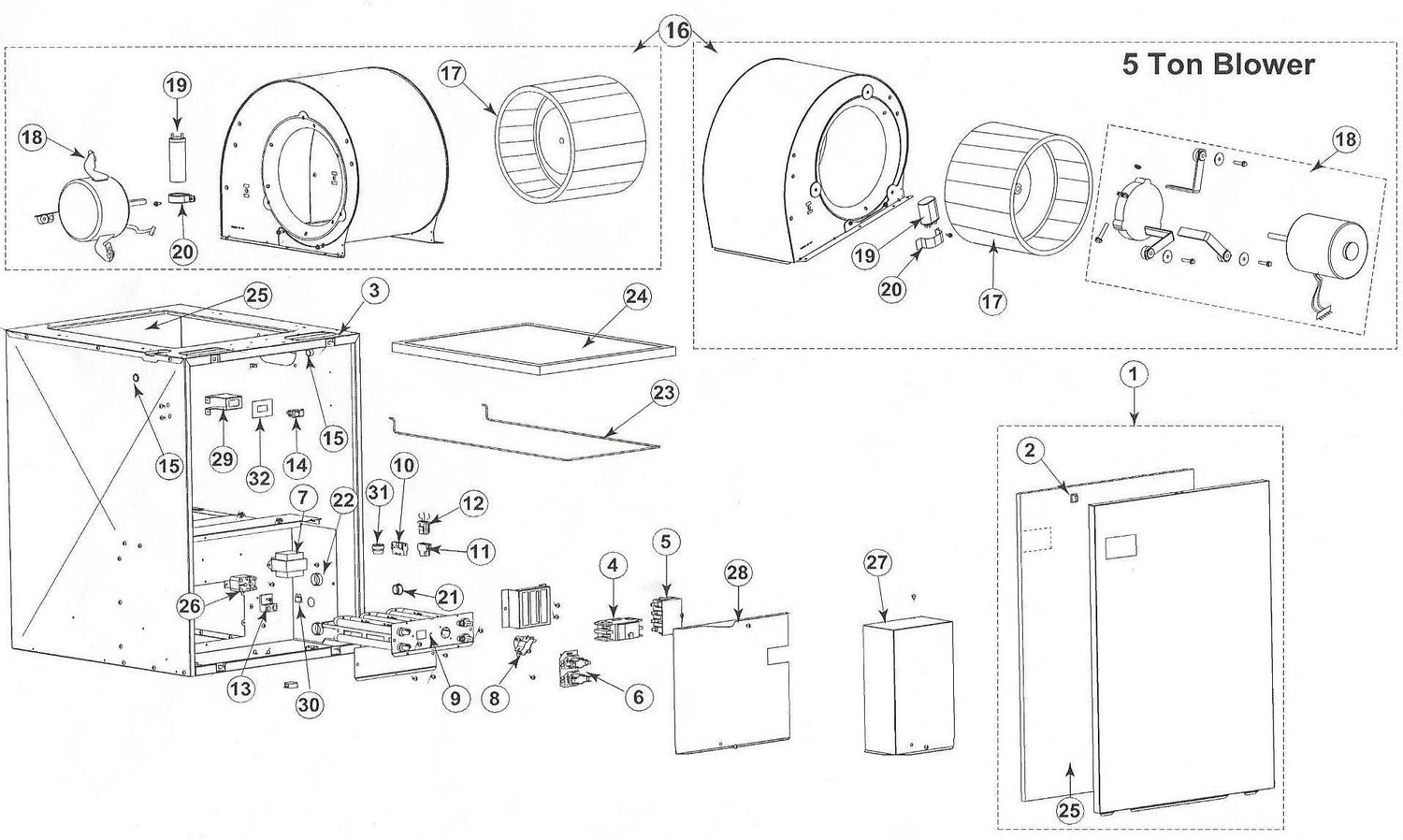

| # | DESCRIPTION | 10 | 12 | 15 | 17 | 20 | 23 | 5 Ton | MFG # | Link |
| 1
|
Panel Door - White (incl. insulation) | 1 | 1 | 1 | 1 | 1 | 1 | - | 917260 | Click Here |
| Panel Door - White (incl. insulation) | 1 | 1 | 1 | 1 | 1 | 1 | - | 917261 | Click Here | |
| 2 | Receptacle - Latch | 2 | 2 | 2 | 2 | 2 | 2 | - | 668420 | Click Here |
| 3 | Strike - Latch | 4 | 4 | 4 | 4 | 4 | 4 | - | 668905 | Click Here |
| 4 | Circuit Breaker- 60A, 2 Pole | 1 | 2 | 2 | 2 | 2 | 2 | - | 632249 | Click Here |
| 5 | Adapter Kit- Single circuit Single Circuit (standard 012 models, Optional on 015-023 models) |
- | 1 | - | - | - | - | - | 913874 | Click Here |
| 6
|
Sequencer - E2# 10 & 12 kw | 1 | 1 | - | - | - | - | - | 621696 | Click Here |
| Sequencer - E2# 15 & 17 kw | - | - | 1 | 1 | - | - | - | 621678 | Click Here | |
| Sequencer - E2# 20 & 23 kw | - | - | - | - | 1 | 1 | - | 621596 | Click Here | |
| 7 | Transformer - 30 VA | 1 | 1 | 1 | 1 | 1 | 1 | - | 621814 | Click Here |
| 8
|
Limit - 2-Pole | 1 | 1 | 1 | 1 | 2 | 2 | - | 626458 | Click Here |
| Limit - 1-Pole | - | - | 1 | 1 | - | - | - | 626459 | Click Here | |
| 9
|
Element Assembly - 5.0kw @ 240V | - | - | 1 btm* |
- | - | - | - | 902818 | Click Here |
| Element Assembly - 5.4kw @ 240V | - | - | - | 1 btm* |
- | - | - | 902820 | Click Here | |
| Element Assembly - 10.0 KW @240V | 1 top* |
- | 1 top* |
- | 2 | 1 btm* |
- | 902821 | Click Here | |
| Element Assembly - 10.8kw @ 240V | - | - | - | 1 top* |
- | - | - | 902823 | Click Here | |
| Element Assembly - 11.6kw @ 240V | - | 1 top* |
- | - | - | 1 top* |
- | 902824 | Click Here | |
| 10 | Connector - Cap 6-Pin Inline | 1 | 1 | 1 | 1 | 1 | 1 | - | 632275 | Click Here |
| 11 | Connector - Cap 6-Pin Matrix | 1 | 1 | 1 | 1 | 1 | 1 | - | 631728 | Click Here |
| 12
|
Plug Assembly - Thermostat E(-)EH | 1 | 1 | 1 | 1 | 1 | 1 | - | 389810 | Click Here |
| Plug Assembly - Thermostat E(-)EB | 1 | 1 | 1 | 1 | 1 | 1 | - | 389820 | Click Here | |
| 13 | Lug - Ground | 1 | 1 | 1 | 1 | 1 | 1 | - | 632235 | Click Here |
| 14 | Switch - SPDT (ON/AUTO) EH Models only | 1 | 1 | 1 | 1 | 1 | 1 | - | 632338 | Click Here |
| 15 | Bushing | 2 | 2 | 2 | 2 | 2 | 2 | - | 631781 | Click Here |
| 16
|
Blower - 2-Speed (incl. items 17-20) | 1 | 1 | 1 | 1 | 1 | 1 | - | 903074 | Click Here |
| Blower - Multi Speed (Incl. #17-22) optional in EH and EB models, standard in 5 ton units |
- | - | - | - | - | - | 1 | 902985 | Click Here | |
| Blower - 4-Speed/240v (incl. items 17-20) optional in E2E models, standard in E2EB models |
1 | 1 | 1 | 1 | 1 | 1 | - | 902993 | Click Here | |
| 17
|
Wheel - Blower (10 x 8) | 1 | 1 | 1 | 1 | 1 | 1 | - | 667037 | Click Here |
| Wheel - Blower (11 x 8) | - | - | - | - | - | - | 1 | 667258 | Click Here | |
| 18
|
Motor - 1/5 HP, 2-Speed | 1 | 1 | 1 | 1 | 1 | 1 | - | 903076 | Click Here |
| Motor - 1/3 HP 4-Speed | 1 | 1 | 1 | 1 | 1 | 1 | - | 903075 | Click Here | |
| Motor - 3/4 HP (4 Speed) with mounting band and legs |
- | - | - | - | - | - | 1 | 903096 | Click Here | |
| 19
|
Capacitor - 7.5 MFD 370v | 1 | 1 | 1 | 1 | 1 | 1 | - | 621434 | Click Here |
| Capacitor - 20MF/370V | - | - | - | - | - | - | 1 | 621377 | Click Here | |
| 20
|
Strap - Capacitor | 1 | 1 | 1 | 1 | 1 | 1 | - | 606228 | Click Here |
| Strap - Capacitor | - | - | - | - | - | - | 1 | 249090 | Click Here | |
| 21 | Hole Plug - (1/2"): EB Units use 3 each | 2 | 2 | 2 | 2 | 2 | 2 | - | 632307 | Click Here |
| 22 | Hole Plug - (3/4") | 4 | 4 | 4 | 4 | 4 | 4 | - | 632308 | Click Here |
| 23 | Retainer - Filter | 1 | 1 | 1 | 1 | 1 | 1 | - | 669053 | Click Here |
| 24 | Filter | 1 | 1 | 1 | 1 | 1 | 1 | - | 668934 | Click Here |
| 25 | Insulation Kit - optional in E2EH models, standard in E2EB models |
1 | 1 | 1 | 1 | 1 | 1 | - | 902991 | Click Here |
| 26 | Blower Relay - used in E(-)EB models only | 1 | 1 | 1 | 1 | 1 | 1 | - | 620537 | Click Here |
| 27 | Control Door - Right | 1 | 1 | 1 | 1 | 1 | 1 | - | D00740 | Click Here |
| 28
|
Control Door - 10kW Left | 1 | - | - | - | - | - | - | D00721 | Click Here |
| Control Door - 12-23kW Left | - | 1 | 1 | 1 | 1 | 1 | - | D00722 | Click Here | |
| 29 | Switch - Bracket: EH Models only | 1 | 1 | 1 | 1 | 1 | 1 | - | 264920 | Click Here |
| 30 | Fuse - 3-Amp | 1 | 1 | 1 | 1 | 1 | 1 | - | 632261 | Click Here |
| 31 | Bushing - Strain Relief: EH Models only | 1 | 1 | 1 | 1 | 1 | 1 | - | 631758 | Click Here |
| 32 | Gasket - Decorative, Black: EH Models only | 1 | 1 | 1 | 1 | 1 | 1 | - | 689588 | Click Here |
