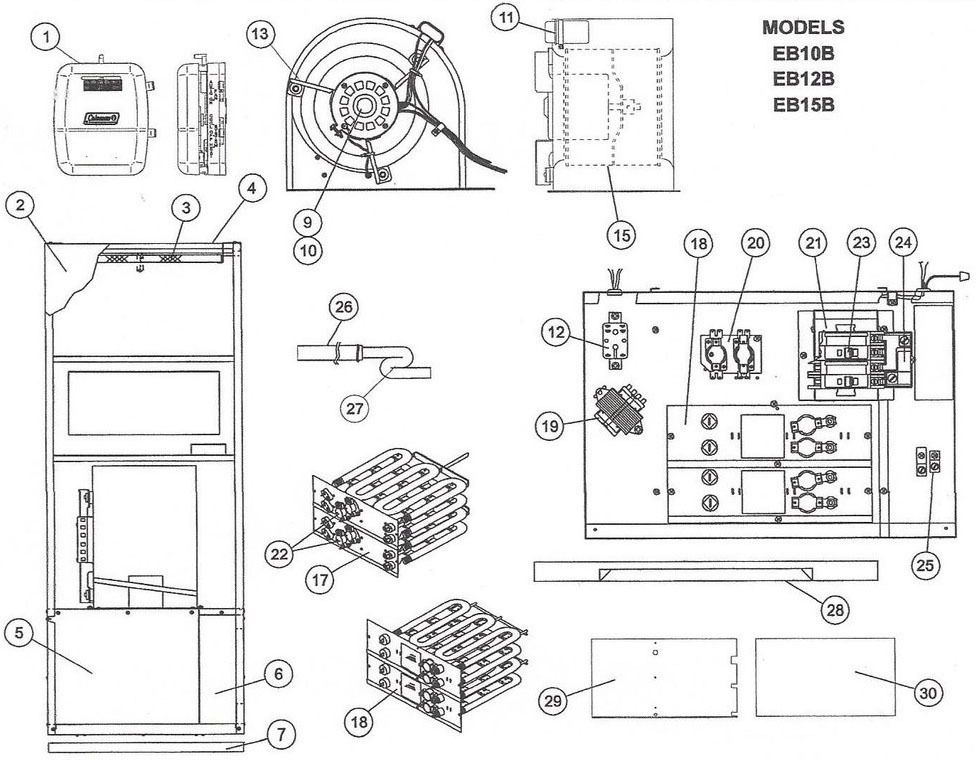

EB (Style B) Parts
| # | DESCRIPTION | EB10B | EB12B | EB15B | EB17B | EB20B | EB23B | MFG# | Link |
| 1 | Thermostat - (Heat/Cool) | 1 | 1 | 1 | 1 | 1 | 1 | 025-38746-000 | Click Here |
| 2
|
Front Panel | 1 | 1 | 1 | 1 | 1 | 1 | 3500-1751/B | Click Here |
| Front Panel - (Front Return 4-Ton) | 1 | 1 | 1 | 1 | 1 | 1 | 3500-1581 | Click Here | |
| Front Panel - (Front Return 5-Ton) | 1 | 1 | 1 | 1 | 1 | 1 | 3500-1591 | Click Here | |
| 3
|
Filter - (16 x 20 x 1) | 1 | 1 | 1 | 1 | 1 | 1 | 1214-2511 | Click Here |
| Filter - (20 x 20 x 1)(Front Return Panel) |
1 | 1 | 1 | 1 | 1 | 1 | 1214-2521 | Click Here | |
| 4 | Support Angle | 1 | 1 | 1 | 1 | 1 | 1 | 3500-1861 | Click Here |
| 5 | Cover - Electric Box | 1 | 1 | 1 | 1 | 1 | 1 | 3500-2361/A | Click Here |
| 6 | Cover - (Service Entrance) | 1 | 1 | 1 | 1 | 1 | 1 | 3500-1271 | Click Here |
| 7 | Sub-base - (Optional) | 1 | 1 | 1 | 1 | 1 | 1 | 3500-1071/B | Click Here |
| 8 | Sub-base - (M10) (Optional) | 1 | 1 | 1 | 1 | 1 | 1 | 3500-5221 | Click Here |
| 9 | Blower Motor - (For furnaces produced before 2/99) |
1 | 1 | 1 | 1 | 1 | 1 | 1468-243P/A | Click Here |
| 10 | Blower Motor - (For furnaces produced after 2/99) |
1 | 1 | 1 | 1 | 1 | 1 | 024-27651-000 | Click Here |
| 11 | Capacitor - (7.5MFD/370V) | 1 | 1 | 1 | 1 | 1 | 1 | 024-20045-000 | Click Here |
| 12 | Relay - Fan | 1 | 1 | 1 | 1 | 1 | 1 | 3110-3301 | Click Here |
| 13 | Motor Mount - Assembly (1PC) (kit) | 1 | 1 | 1 | 1 | 1 | 1 | 373-19831-001 | Click Here |
| 14 | - | - | - | - | - | - | - | ||
| 15 | Blower Wheel | 1 | 1 | 1 | 1 | 1 | 1 | 1472-2831 | Click Here |
| 16 | Limit Baffle - (For furnaces produced before 3/98) |
1 | 1 | 1 | 1 | 1 | 1 | 3500-129 | Click Here |
| 17 | Heater Element - (For furnaces produced before 3/98) |
1 | 1 | 1 | 1 | 1 | 1 | 3500-4111 | Click Here |
| 18 | Heater Element Assembly - w/Limit and Jumper Wire |
1 | 1 | 1 | 1 | 1 | 1 | 3500-411P/A | Click Here |
| 19 | Transformer - (240/24V-40A) | 1 | 1 | 1 | 1 | 1 | 1 | 3300-3861 | Click Here |
| 20 | Sequencer | 1 | 1 | 1 | 1 | 1 | 1 | 3110-3571 | Click Here |
| 21 | Bracket - Circuit Breaker | 1 | 1 | 1 | 1 | 1 | 1 | 3500-128 | Click Here |
| 22
|
Limit Switch (For furnaces produced from 3/98 to 12/00) |
1 | 1 | 1 | 1 | 1 | 1 | 3500-3091 | Click Here |
| Limit Switch (For furnaces produced after 1/00) |
1 | 1 | 1 | 1 | 1 | 1 | 024-35596-000 | Click Here | |
| 23
|
Circuit Breaker - (1 Req'd) | 1 | - | - | - | - | - | 3500-377P/A | Click Here |
| Circuit Breaker - (2 Req'd) | - | 1 | 1 | 1 | 1 | 1 | 3500-377P/A | Click Here | |
| 24 | Buss Bar | 1 | 1 | 1 | 1 | 1 | 1 | 3500-378P | Click Here |
| 25
|
Gound Lug - (Large) | 1 | 1 | 1 | 1 | 1 | 1 | 1216-231 | Click Here |
| Gound Lug - (Small) | - | - | 1 | 1 | 1 | 1 | 025-21798-000 | Click Here | |
| 26 | Tube - Drain | 1 | 1 | 1 | 1 | 1 | 1 | 029-22184-001 | Click Here |
| 27 | Trap - Condensate | 1 | 1 | 1 | 1 | 1 | 1 | 3240-3051 | Click Here |
| 28 | Coil Shelf (7.5 Mfd. 370V.) | 1 | 1 | 1 | 1 | 1 | 1 | 3500-174 | Click Here |
| 29 | Panel - Coil Shelf | 1 | 1 | 1 | 1 | 1 | 1 | 3500-1711 | Click Here |
| 30 | Insulation - Cover Panel | 1 | 1 | 1 | 1 | 1 | 1 | 010-69111-001 | Click Here |
| 31 | See Field Fix Kits
|
||||||||
| 32 | |||||||||
| 33 | |||||||||
| 34 | |||||||||
| 35 | Wiring Diagram | 1 | 1 | 1 | 1 | 1 | 1 | 035-15279-001 | Click Here |
| 36 | Fuse | 1 | 1 | 1 | 1 | 1 | 1 | 025-32746-026 | Click Here |
| 37 | Housing - Blower | 1 | 1 | 1 | 1 | 1 | 1 | 3500-6901/A | Click Here |
| Field Fix Kit For EB12 (A&B) Manufactured Prior to August 1995 | |||
| FIELD FIX KT 3500-7121 CONTAINS: | |||
| # | Description | MFG # | Link |
| 31 | 1 Each Limit Baffle | 3500-101 | Click Here |
| 32 | 2 Each Limit Switch | 3500-3121 | Click Here |
| Field Fix Kit For EB15 (A&B) Manufactured Prior to August 1995 | |||
| FIELD FIX KT 3500-7151 CONTAINS: | |||
| # | Description | MFG # | Link |
| 33 | 1 Each Limit Baffle | 3500-101 | Click Here |
| 34 | 2 Each Limit Switch | 3500-3151/A | Click Here |
