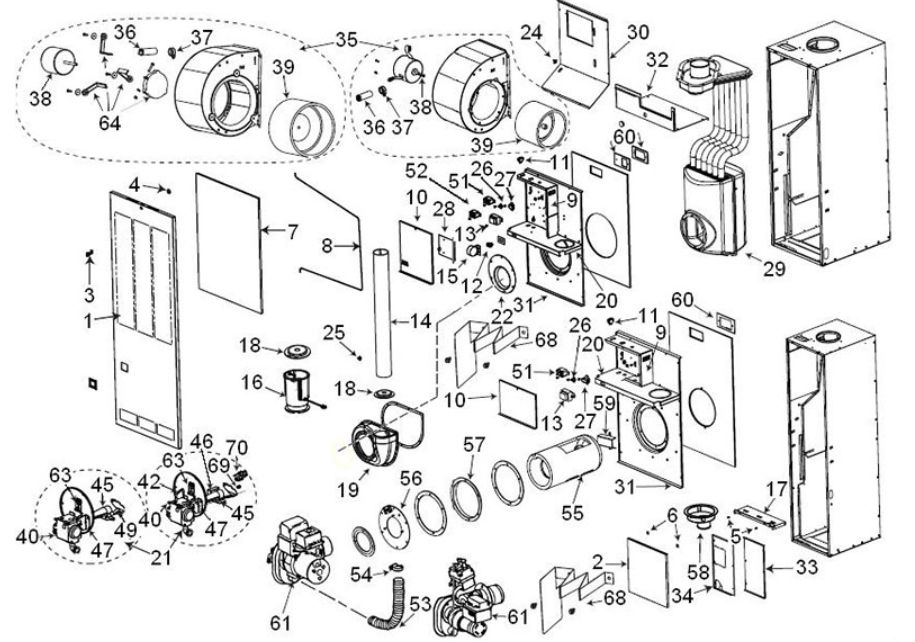

M1GH Parts
| #
|
DESCRIPTION
|
M1GH | Link
|
||||
| 56 | 70 | 77 | 90 | MFG# | |||
| 1 | Door - Louvered (White) | 1 | 1 | 1 | 1 | 903407 | Click Here |
| 2 | Door - Coil (White) | 1 | 1 | 1 | 1 | 903094 | Click Here |
| 3 | Pawl Latch | 1 | 1 | 1 | 1 | 632330 | Click Here |
| 4 | Fastener - Pawl Latch | 1 | 1 | 1 | 1 | 606243 | Click Here |
| 5 | Strike - Door | 1 | 1 | 1 | 1 | 668905 | Click Here |
| 6 | Latch - Door | 1 | 1 | 1 | 1 | 668420 | Click Here |
| 7 | Filter - Air | 1 | 1 | 1 | 1 | 669064 | Click Here |
| 8 | Retainer Wire - Filter | 1 | 1 | 1 | 1 | 669065 | Click Here |
| 9 | Control Box | 1 | 1 | 1 | 1 | 386720 | Click Here |
| 10 | Cover - Control Box | 1 | 1 | 1 | 1 | 264810 | Click Here |
| 11 | Switch - On/Off | 1 | 1 | 1 | 1 | 632337 | Click Here |
| 12 | Switch - Fan Auto/On | 1 | 1 | 1 | 1 | 632338 | Click Here |
| 13 | Transformer | 1 | 1 | 1 | 1 | 621807 | Click Here |
| 14 | Air Pipe | 1 | 1 | 1 | 1 | 387210 | Click Here |
| 15 | Switch - Pressure | - | - | 1 | 1 | 632332 | Click Here |
| 16 | Blower Assy. - Combustion | - | - | 1 | 1 | 903404 | Click Here |
| 17 | Shelf Divider | 1 | 1 | 1 | 1 | 355050 | Click Here |
| 18 | Flange - Air Orifice | 1 | 1 | 1 | 1 | 267117 | Click Here |
| 19 | Air Box - Lower | 1 | 1 | 1 | 1 | D06120 | Click Here |
| 20 | Shelf Divider | 1 | 1 | 1 | 1 | 385220 | Click Here |
| 21 | Burner - (less Orifice) | 1 | 1 | 1 | 1 | 903405 | Click Here |
| 22 | Plate - Entry-Gas | 1 | 1 | 1 | 1 | 383610 | Click Here |
| 23 | Gasket Kit | 1 | 1 | 1 | 1 | 730534 | Click Here |
| 24 | Limit Auxiliary | 1 | 1 | 1 | 1 | 626472 | Click Here |
| 25 | Limit - Flame Roll-out | 1 | 1 | - | - | 626375 | Click Here |
| 26
|
Limit - Air Temp (F/056) | 1 | - | - | - | 626482 | Click Here |
| Limit - Air Temp (F/070 - 077) | - | 1 | 1 | - | 626481 | Click Here | |
| Limit - Air Temp (F/090) | - | - | - | 1 | 626470 | Click Here | |
| 27 | Switch - Fan Control | 1 | 1 | 1 | 1 | 626468 | Click Here |
| 29
|
Heat Exchanger | 1 | - | 1 | - | 903415 | Click Here |
| Heat Exchanger | - | 1 | - | - | 903417 | Click Here | |
| Heat Exchanger - (F/090) | - | - | - | 1 | 903416 | Click Here | |
| 30 | Blower Deck | 1 | 1 | 1 | 1 | 495380 | Click Here |
| 31 | Air Casing | 1 | 1 | 1 | 1 | 265010 | Click Here |
| 32 | Partition - Upper | 1 | 1 | 1 | 1 | 387220 | Click Here |
| 33 | Plate - Right Close-off | 1 | 1 | 1 | 1 | 355490 | Click Here |
| 34 | Plate - Left Close-off | 1 | 1 | 1 | 1 | 355480 | Click Here |
| 35
|
Blower Assembly - (C unit) | 1 | 1 | 1 | 1 | 903411 | Click Here |
| Blower Assembly - (1650 CFM) | - | - | - | - | - | ||
| Blower Assembly - (D unit) | - | - | - | - | - | ||
| 36
|
Capacitor | - | - | 1 | 1 | 621434 | Click Here |
| Capacitor - (C unit) | - | - | - | - | - | ||
| Capacitor - (D unit) | - | - | - | - | - | ||
| 37 | Strap - Capacitor | - | - | 1 | 1 | 606228 | Click Here |
| 38
|
Blower Motor | 1 | - | - | - | 902042 | Click Here |
| Blower Motor | - | 1 | - | - | 901873 | Click Here | |
| Blower Motor | - | - | 1 | 1 | 901874 | Click Here | |
| 39
|
Blower Wheel- (10x8) | 1 | 1 | - | - | 667294 | Click Here |
| Blower Wheel - (10x8) | - | - | 1 | 1 | 667037 | Click Here | |
| 40
|
Gas Valve - (Robert Shaw) | 1 | 1 | 1 | 1 | 624583 | Click Here |
| Gas Valve - (Honeywell) | 1 | 1 | 1 | 1 | 624609 | Click Here | |
| 41 | Thermocouple (not shown) | 1 | 1 | 1 | 1 | 631132 | Click Here |
| 42 | Pilot Tube | 1 | 1 | 1 | 1 | 903435 | Click Here |
| 43
|
Orifice - Natural Gas (not shown) | 1 | - | - | - | 661029 | Click Here |
| Orifice - Natural Gas (not shown) | - | 1 | - | - | 661024 | Click Here | |
| Orifice - Natural Gas (not shown) | - | - | 1 | - | 661021 | Click Here | |
| Orifice - Natural Gas (not shown) | - | - | - | 1 | 661017 | Click Here | |
| 44
|
Orifice - LP Gas (not shown) | 1 | - | - | - | 661045 | Click Here |
| Orifice - LP Gas (not shown) | - | 1 | - | - | 661042 | Click Here | |
| Orifice - LP Gas (not shown) | - | - | 1 | - | 661040 | Click Here | |
| Orifice - LP Gas (not shown) | - | - | - | 1 | 661036 | Click Here | |
| 45 | Venturi Assy. | 1 | 1 | 1 | 1 | 660886 | Click Here |
| 46 | Shield - Pilot | 1 | 1 | 1 | 1 | 264550 | Click Here |
| 47
|
Valve Support - (if R'shaw) | 1 | 1 | 1 | 1 | 385210 | Click Here |
| Valve Support - (if H'well) | 1 | 1 | 1 | 1 | 386460 | Click Here | |
| 48 | Conversion Kit - HSI (not shown) | 1 | 1 | 1 | 1 | 903428 | Click Here |
| 50 | Pilot Lighter Rod (not shown) | 1 | 1 | 1 | 1 | 618020 | Click Here |
| 51 | Relay - Blower | 1 | 1 | 1 | 1 | 620537 | Click Here |
| 52 | Relay - Combustion Blower | - | - | 1 | 1 | 620537 | Click Here |
| 60 | Sheild - Insulation | 1 | 1 | 1 | 1 | 264541 | Click Here |
| 62 | H'Well Elbow Assy (not shown) | 1 | 1 | 1 | 1 | 624612 | Click Here |
| 63 | Door Assy. - Observation | 1 | 1 | 1 | 1 | 264080 | Click Here |
| 64 | Mount Kit - Motor (C unit) | - | - | - | - | - | |
| 65 | Piezo Ignightor Kit (not shown) | 1 | 1 | 1 | 1 | 903458 | Click Here |
| 66 | Fuse - 3A (not shown) | 1 | 1 | 1 | 1 | 632261 | Click Here |
| 67 | Burner Spud - (not shown) | 1 | 1 | 1 | 1 | 663699 | Click Here |
| 68 | Baffle Kit - Combustion | 1 | 1 | 1 | 1 | 903722 | Click Here |
| 69 | Pilot Orifice | 1 | 1 | 1 | 1 | 660791 | Click Here |
| 70 | Burner Assembly - Pilot | 1 | 1 | 1 | 1 | 660911 | Click Here |
