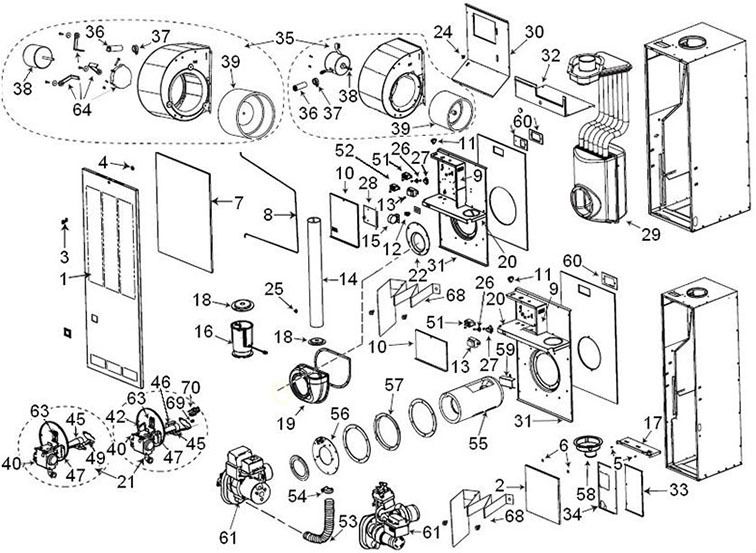

M1M Parts
| #
|
DESCRIPTION
|
M1MA | M1MB | M1M(C,D) | MFG#
|
Link
|
|||||||
| 56 | 70 | 56 | 70 | 77 | 90 | 56 | 70 | 77 | 90 | ||||
| 1 | Door - Louvered (White) |
1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 903407 | Click Here |
| 2 | Door - Coil (White) | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 903094 | Click Here |
| 3 | Pawl Latch | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 632330 | Click Here |
| 4 | Fastener - Pawl Latch |
1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 606243 | Click Here |
| 5 | Strike - Door | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 668905 | Click Here |
| 6 | Latch - Door | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 668420 | Click Here |
| 7 | Filter - Air | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 669064 | Click Here |
| 8 | Retainer Wire - Filter |
1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 669065 | Click Here |
| 9 | Control Box | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 386720 | Click Here |
| 10 | Cover - Control Box | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 264840 | Click Here |
| 11 | Switch - On/Off | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 632337 | Click Here |
| 13 | Transformer | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 621807 | Click Here |
| 14 | Air Pipe | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 387210 | Click Here |
| 15 | Switch - Pressure | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 632332 | Click Here |
| 16 | Blower Asm - Combustion |
1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 903404 | Click Here |
| 17 | Shelf Divider | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 355050 | Click Here |
| 18 | Flange - Air Orifice | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 263875 | Click Here |
| 19 | Lower Air Box | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | D06120 | Click Here |
| 20 | Close-off Shelf | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 385280 | Click Here |
| 21 | Burner - (less Orifice) |
1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 903406 | Click Here |
| 22 | Plate - Entry-Gas | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 383610 | Click Here |
| 23 | Gasket Kit | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 730534 | Click Here |
| 24 | Limit Auxillary | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 626472 | Click Here |
| 26
|
Limit - Air Temp | 1 | - | 1 | - | - | - | 1 | - | - | - | 626482 | Click Here |
| Limit - Air Temp | - | 1 | - | 1 | - | - | - | 1 | - | - | 626470 | Click Here | |
| Limit - Air Temp | - | - | - | - | 1 | - | - | - | 1 | - | 626481 | Click Here | |
| Limit - Air Temp | - | - | - | - | - | 1 | - | - | - | 1 | 626469 | Click Here | |
| 28 | Integrated Control | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 903429 | Click Here |
| 29
|
Heat Exchanger | 1 | 1 | 1 | 903418 | Click Here | |||||||
| Heat Exchanger | 1 | 1 | 1 | 1 | 1 | 903415 | Click Here | ||||||
| Heat Exchanger | 1 | 1 | 903416 | Click Here | |||||||||
| 30 | Blower Deck | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 495380 | Click Here |
| 31 | Air Casing | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 265010 | Click Here |
| 32 | Upper Partition | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 387220 | Click Here |
| 33 | Close-off Plate - Right |
1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 355490 | Click Here |
| 34 | Close-off Plate - Left |
1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 355480 | Click Here |
| 35
|
Blower Asm | 1 | 903409 | Click Here | |||||||||
| Blower Asm | 1 | 903410 | Click Here | ||||||||||
| Blower Asm | 1 | 1 | 903412 | Click Here | |||||||||
| Blower Asm | 1 | 1 | 903411 | Click Here | |||||||||
| Blower Asm | 1 | 1 | 1 | 1 | 903413 | Click Here | |||||||
| Blower Asm - (D unit)
|
1 | 1 | 1 | 1 | 903414 | Click Here | |||||||
| 36
|
Capacitor | 1 | 1 | 1 | 1 | 1 | 1 | 621435 | Click Here | ||||
| Capacitor | 1 | 1 | 621434 | Click Here | |||||||||
| Capacitor - (D unit)
|
1 | 1 | 1 | 1 | 621490 | Click Here | |||||||
| 37 | Capacitor Strap | - | - | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 606228 | Click Here |
| 38
|
Blower Motor | 1 | - | - | - | - | - | - | - | - | - | 902042 | Click Here |
| Blower Motor | - | 1 | - | - | - | - | - | - | - | - | 901873 | Click Here | |
| Blower Motor | - | - | 1 | 1 | - | - | - | - | - | - | 903432 | Click Here | |
| Blower Motor | - | - | - | - | 1 | 1 | - | - | - | - | 901874 | Click Here | |
| Blower Motor | - | - | - | - | - | - | 1 | 1 | 1 | 1 | 903433 | Click Here | |
| Blower Motor - (D unit) |
- | - | - | - | - | - | 1 | 1 | 1 | 1 | 903434 | Click Here | |
| 39
|
Blower Wheel | 1 | 1 | - | - | - | - | - | - | - | - | 667294 | Click Here |
| Blower Wheel | - | - | 1 | 1 | 1 | 1 | - | - | - | - | 667037 | Click Here | |
| Blower Wheel | - | - | - | - | - | - | 1 | 1 | 1 | 1 | 667258 | Click Here | |
| Blower Wheel - (D ton) |
- | - | - | - | - | - | 1 | 1 | 1 | 1 | 667037 | Click Here | |
| 40
|
Gas Valve - (Robert Shaw) |
1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 624490 | Click Here |
| Gas Valve - (Honeywell) |
1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 624610 | Click Here | |
| 41 | Thermocouple (not shown) |
- | - | - | - | - | - | - | - | - | - | - | |
| 42 | Pilot Tube | - | - | - | - | - | - | - | - | - | - | - | |
| 43
|
(not shown) Orifice - Natural Gas |
1 | - | 1 | - | - | - | 1 | - | - | - | 661029 | Click Here |
| Orifice - Natural Gas | - | 1 | - | 1 | - | - | - | 1 | - | - | 661024 | Click Here | |
| Orifice - Natural Gas | - | - | - | - | 1 | - | - | - | 1 | - | 661021 | Click Here | |
| Orifice - Natural Gas | - | - | - | - | - | 1 | - | - | - | 1 | 661017 | Click Here | |
| 44
|
(not shown) Orifice - LP Gas |
1 | - | 1 | - | - | - | 1 | - | - | - | 661045 | Click Here |
| Orifice - LP Gas | - | 1 | - | 1 | - | - | - | 1 | - | - | 661042 | Click Here | |
| Orifice - LP Gas | - | - | - | - | 1 | - | - | - | 1 | - | 661040 | Click Here | |
| Orifice - LP Gas | - | - | - | - | - | 1 | - | - | - | 1 | 661036 | Click Here | |
| 47
|
Valve Support - (if R'shaw) |
1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 385210 | Click Here |
| Valve Support - (if H'well) |
1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 386460 | Click Here | |
| 49 | Ignitor Kit | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 903110 | Click Here |
| 60 | Sheild - Insulation | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 264541 | Click Here |
| 62 | H'Well Elbow Assy (not shown) |
1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 624612 | Click Here |
| 63 | Door Assy. - Observation |
1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 264080 | Click Here |
| 64 | Mount Kit - Motor (C unit) |
1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 903489 | Click Here |
| 66 | Fuse - 3A (not shown) |
1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 632261 | Click Here |
| 67 | Burner Spud (not shown) |
1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 663699 | Click Here |
| 68 | Baffle Kit - Combustion |
1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 903722 | Click Here |
