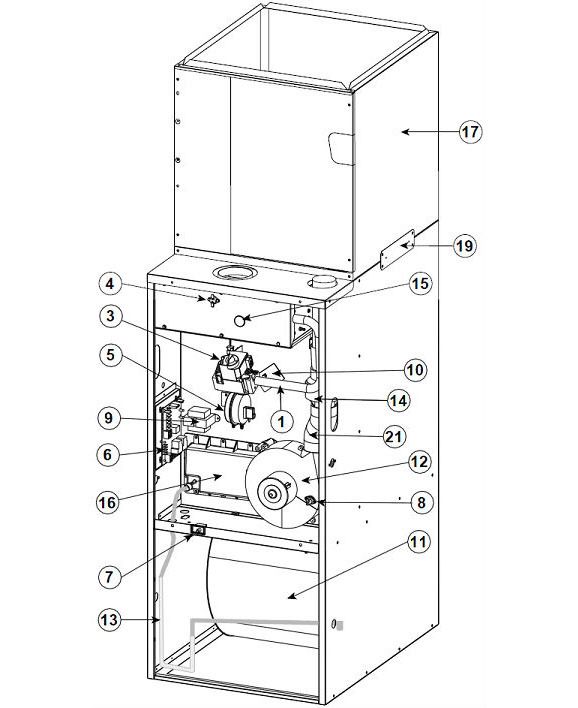

M2RC Parts
| # | DESCRIPTION | 80,000 BTUH input |
100,000 BTUH input |
MFG# | Link |
| 1 | Manifold | 1 | 1 | 663552 | Click Here |
| 2 | Flame Sensor - (Not Shown) | 1 | 1 | 632316 | Click Here |
| 3 | Gas Valve | 1 | 1 | 624610 | Click Here |
| 4 | Roll-Out Limit Switch - (155°F) (Not Shown) | 1 | 1 | 626422 | Click Here |
| 5 | Pressure Switch | 1 | 1 | 632252 | Click Here |
| 6 | Control Board - Intergrated | 1 | 1 | 903106 | Click Here |
| 7 | Switch - Blower Door | 1 | 1 | 632319 | Click Here |
| 8 | Limit Switch - Vent Safety (160°F) | 1 | 1 | 626461 | Click Here |
| 9 | Transformer | 1 | 1 | 621486 | Click Here |
| 10 | Limit Switch - (195°F) | - | 1 | 626419 | Click Here |
| 11 | Blower Assembly | 1 | 1 | 902815 | Click Here |
| 12
|
Blower - Inducer (with gasket)* | 1 | 1 | 903962 | Click Here |
| Blower - Inducer (with gasket) | 1 | 1 | 902977 | Click Here | |
| 13 | Tube - J Trap Hard | 1 | 1 | 663706 | Click Here |
| 14 | Drain Assembly - In-Line | 1 | 1 | 663714 | Click Here |
| 15
|
Burner Box Assembly - (Nat. Gas Ready) | 1 | 1 | D09393 | Click Here |
| Burner Box Assembly - (LP Gas Ready) | 1 | 1 | D09394 | Click Here | |
| 16 | Box - Header Outlet Plus Sealant | 1 | 1 | 903104 | Click Here |
| 17 | Cased Coil Wrapper | 1 | 1 | 914958 | Click Here |
| 18 | Filter - (18 5/8 x 26 1/2 x 1/4) (Not Shown) | 1 | 1 | 669300 | Click Here |
| 19 | Bracket - Attachment | 1 | 1 | 265450 | Click Here |
| 20 | Turbulator (Not Shown) | 1 | 1 | D01220 | Click Here |
| 21 | Coupling - Neoprene | 1 | 1 | 663709 | Click Here |
| 22 | Orifice - Inducer (Not Shown) | - | 1 | 151884 | Click Here |
| 23 | Inshot Burner (Not Shown) | 1 | 1 | 660812 | Click Here |
| 24
|
Orifice - Natural Gas #45 (Not Shown) | 1 | 1 | 661045 | Click Here |
| Orifice - LP Gas #55 (Not Shown) | 1 | 1 | 661055 | Click Here | |
| 25 | Ignitor (Not Shown) | 1 | 1 | 903110 | Click Here |
| 26 | Heat Exchanger Assembly (Not Shown) | - | 1 | D04550 | Click Here |
| 27 | Capacitor Assembly - 10 MFD, 370V (Not Shown) | 1 | 1 | 621435 | Click Here |
| 28 | Blower Wheel - CCW (Not Shown) | 1 | 1 | 667271 | Click Here |
| 29 | Motor - 1/2 HP (4 Speed) (Not Shown) | 1 | 1 | 902128 | Click Here |
| 30 | Access Doors - Set (Not Shown) | 1 | 1 | 903113 | Click Here |
