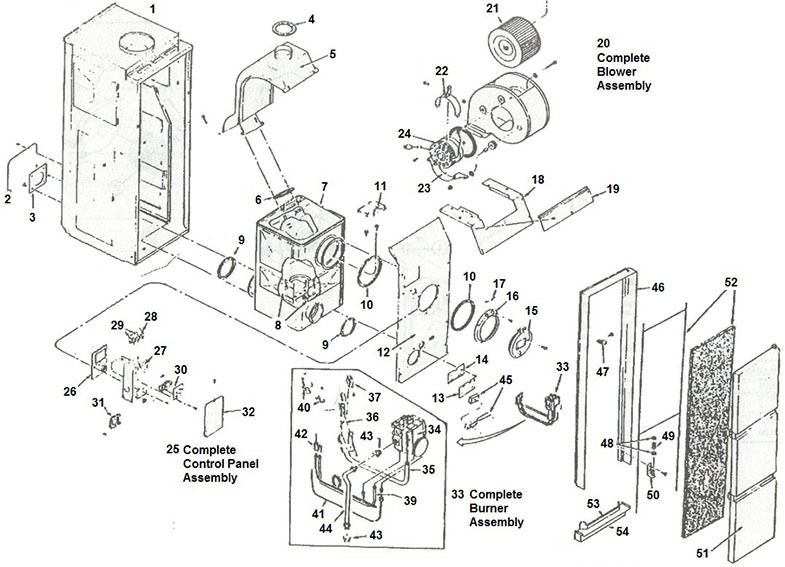

MAC Parts
| # | DESCRIPTION | MFG# | Link |
| 1
|
Cabinet Assembly - Complete (MAC 1145) | 4132100 | Click Here |
| Cabinet Assembly - Complete (MAC 1155) | 4132000 | Click Here | |
| Cabinet Assembly - Complete (MAC 1165 & 1168) | 4131900 | Click Here | |
| 2 | Plate - Back | 2078702 | Click Here |
| 3
|
Orifice - Combustion Air (MAC 1145) | 2086102 | Click Here |
| Orifice - Combustion Air (MAC 1155) | 2083802 | Click Here | |
| Orifice - Combustion Air (MAC 1165) | 2084601 | Click Here | |
| Orifice - Combustion Air (MAC 1168) | 2199600 | Click Here | |
| 4 | Gasket - Upper Flue Pipe | 688103 | Click Here |
| 5 | Radiator | 4276100 | Click Here |
| 6 | Gasket - Lower Flue Pipe | 688095 | Click Here |
| 7
|
Heat Exchanger - (MAC 1145) | 4077404 | Click Here |
| Heat Exchanger - (MAC 1155, 1165, 1168) | 4070205 | Click Here | |
| 8 | Baffle (4) - Heat Exchanger | 2354500 | Click Here |
| 9 | Gasket - Entry (2) | 668092 | Click Here |
| 10 | Gasket - Fire Door (2) | 668096 | Click Here |
| 11 | Burner - Target | 667658 | Click Here |
| 12 | Panel - Air Casing (MAC - Series) | 4094607 | Click Here |
| 13 | Lower Cover - Air Casing (MAC - Series) | 2143500 | Click Here |
| 14 | Upper Cover - Air Casing | 2143600 | Click Here |
| 15 | Door - Fire (MAC Series) | 3169701 | Click Here |
| 16 | Extension - Fire Door (MAC - Series) | 3098422 | Click Here |
| 17 | Hinge Pin - Fire Door (MAC - Series) | 6676440 | Click Here |
| 18 | Saddle - Air Casing | 3103903 | Click Here |
| 19 | Plate - Ridge | 2092900 | Click Here |
| 20
|
Blower Assembly - Complete (MAC 1145 & 1155) | 9006720 | Click Here |
| Blower Assembly - Complete (MAC 1165 & 1168) | 9006730 | Click Here | |
| 21
|
Wheel - Blower 8x5 (MAC 1145, 1165 & 1168) | 667002 | Click Here |
| Wheel - Blower 9x5 (MAC 1155) | 667030 | Click Here | |
| 22 | Upper Band - Motor | 3066801 | Click Here |
| 23 | Hanger Assembly - Motor | 306670 | Click Here |
| 24
|
Motor - Heating Only, Band MT | 620164 | Click Here |
| Motor - Heating Only, Legs | 901374 | Click Here | |
| Motor - Heating & Cooling | 620699 | Click Here | |
| 25
|
Control Panel Assembly - Complete (MAC 1145) | 4212400 | Click Here |
| Control Panel Assembly - Complete (MAC 1165, 1168) | 4212500 | Click Here | |
| Control Panel Assembly - Complete (MAC 1165, 1168) | 4212600 | Click Here | |
| 26 | Insulation - Control Panel | 6880721 | Click Here |
| 27 | Board - Terminal | 6313110 | Click Here |
| 28 | Switch - On/Off | 6313050 | Click Here |
| 29
|
Receptacle - White (Summer Fan) | 6314870 | Click Here |
| Receptacle - Black (Heating) | 6313000 | Click Here | |
| 30
|
Assembly - Fan & Limit 4 PRG | 626023 | Click Here |
| Assembly - Fan & Limit 3 PRG | 626174 | Click Here | |
| Assembly - Top (MAC 1145) | 626025 | Click Here | |
| 31 | Transformer | 620825 | Click Here |
| 32 | Cover - Control Panel | 3083700 | Click Here |
| 33
|
Burner Assembly - Nat. (MAC - Series) | 3270201 | Click Here |
| Burner Assembly - LP (MAC - Series) | 3270101 | Click Here | |
| 34
|
Gas Control - Unitrol Replacement | 6240603 | Click Here |
| Gas Control - New Style, Type "W" | - | ||
| 35 | Pipe - Main Burner | 6626490 | Click Here |
| 36
|
Orifice - Main Burner - Nat. (MAC 1145) #30 | 106557 | Click Here |
| Orifice - Main Burner - LP (MAC 1145) #48 | 106558 | Click Here | |
| Orifice - Main Burner - Nat. (MAC 1155) #27 | 106555 | Click Here | |
| Orifice - Main Burner - LP (MAC 1155) #43 | 106556 | Click Here | |
| Orifice - Main Burner - Nat. (MAC 1165) #22 | 106553 | Click Here | |
| Orifice - Main Burner - LP (MAC 1165) #41 | 106554 | Click Here | |
| Orifice - Main Burner - Nat. (MAC 1168) #20 | 1187210 | Click Here | |
| Orifice - Main Burner - LP (MAC 1168) #40 | 118722 | Click Here | |
| 37 | Shield - Pilot | 2143700 | Click Here |
| 38
|
Burner - Pilot | 660284 | Click Here |
| Burner - Pilot - Nat. BCR 18 | 660153 | Click Here | |
| Burner - Pilot - LP BBR 10 | 660149 | Click Here | |
| 39 | Tube - Pilot | 3184700 | Click Here |
| 40
|
Electrode - (RG Series) | 6310810 | Click Here |
| Bracket - Mounting - Electode (RG Series) | 2140600 | Click Here | |
| 41 | Tube - Vent | 3184500 | Click Here |
| 42 | Thermocouple | 631132 | Click Here |
| 43 | Connector - Inlet Fuel Line (2) | 6624690 | Click Here |
| 44 | Line - Inlet Fuel | 3282900 | Click Here |
| 45
|
Ignitor - (RG Series) | 6310720 | Click Here |
| Lever - Ignitor (RG Series) | 6602130 | Click Here | |
| 46 | Frame - Outer Door | 4126602 | Click Here |
| 47 | Catch - Door | 7256191 | Click Here |
| 48 | Washer - Door (2) | 1119400 | Click Here |
| 49 | Spring - Door | 6677170 | Click Here |
| 50 | Hinge - Bottom | 2113901 | Click Here |
| 51 | Door - Outer | 9002090 | Click Here |
| 52
|
Filter - Furnace | 667721 | Click Here |
| Filter Kit - (Includes filter and three retainers) | 925056 | Click Here | |
| 53 | Frame - Bottom | 4203200 | Click Here |
| 54 | Extension - Bottom Frame - Optional | 2173400 | Click Here |
