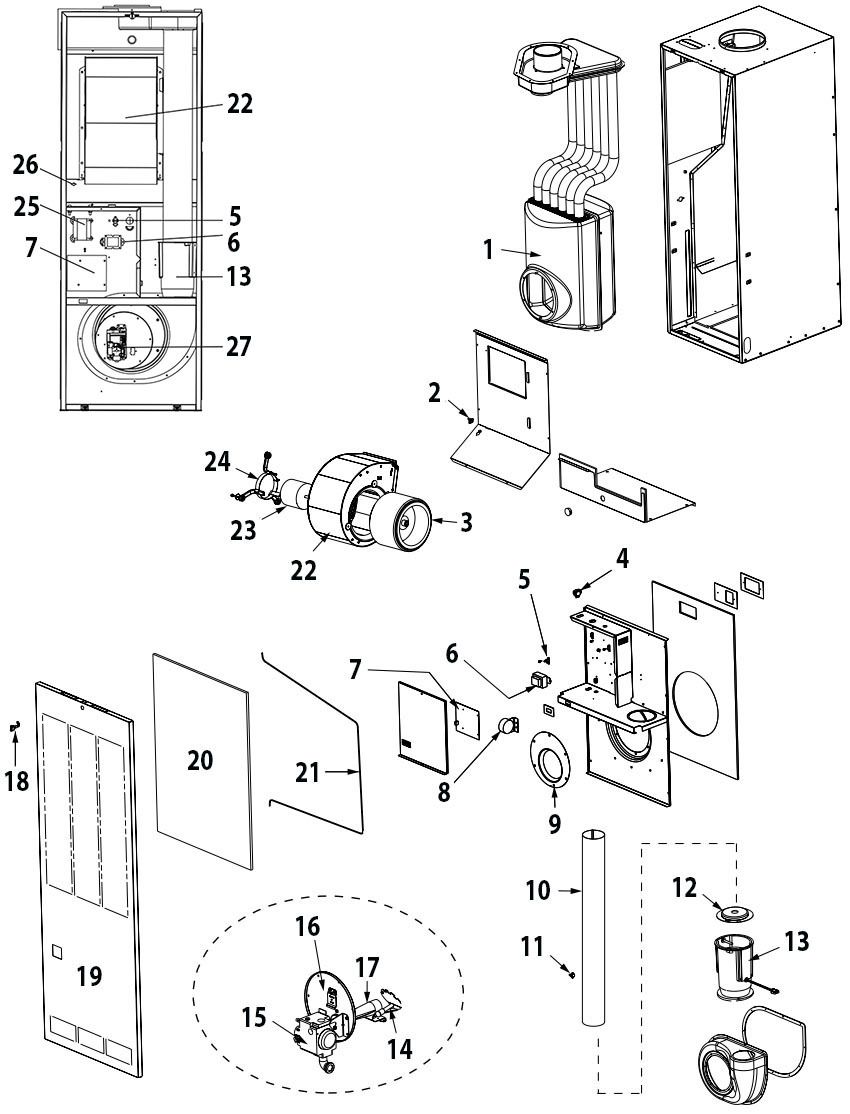

MG1E Parts
| #
|
DESCRIPTION
|
MG1E | MFG#
|
Link
|
|||
| 56 | 70 | 77 | 90 | ||||
| 1 | Heat Exchanger | 1 | 1 | 1 | 1 | 903420 | Click Here |
| 2 | Limit Switch - Auxiliary | 1 | 1 | 1 | 1 | 626619R | Click Here |
| 3 | Blower Wheel | 1 | 1 | 1 | 1 | 667258R | Click Here |
| 4 | Switch - On/Off | 1 | 1 | 1 | 1 | 632337R | Click Here |
| 5
|
Limit Switch - Main Air Temperature | 1 | - | - | - | 626470R | Click Here |
| Limit Switch - Main Air Temperature | - | 1 | 1 | 1 | 626618R | Click Here | |
| 6 | Transformer | 1 | 1 | 1 | 1 | 621807R | Click Here |
| 7 | Control - Intergrated | 1 | 1 | 1 | 1 | 1021575R | Click Here |
| 8 | Switch - Pressure | 1 | 1 | 1 | 1 | 1010775R | Click Here |
| 9 | Plate - Gas Entry | - | - | - | - | - | |
| 10 | Pipe - Air | 1 | 1 | 1 | 1 | 387210R | Click Here |
| 11 | Limit Switch - Flame Roll Out | - | - | - | - | - | |
| 12 | Flange - Air Orifice | 1 | 1 | 1 | 1 | 263875R | Click Here |
| 13 | Combustion Blower - Assembly | 1 | 1 | 1 | 1 | 903404 | Click Here |
| 14 | Ignitor | 1 | 1 | 1 | 1 | 903110A | Click Here |
| 15 | Gas Valve - (Honeywell) | 1 | 1 | 1 | 1 | 903596 | Click Here |
| 16 | Door - Observation | 1 | 1 | 1 | 1 | 264080R | Click Here |
| 17 | Venturi - Assembly | - | - | - | - | - | |
| 18
|
Latch - Pawl | 1 | 1 | 1 | 1 | 618107R | Click Here |
| Strike - Door | 1 | 1 | 1 | 1 | 1018719 | Click Here | |
| Latch - Door | 1 | 1 | 1 | 1 | 668420R | Click Here | |
| 19 | Door - Louvered (White) | 1 | 1 | 1 | 1 | 903407 | Click Here |
| 20 | Filter - Air | 1 | 1 | 1 | 1 | 669064R | Click Here |
| 21 | Retainer - Filter | 1 | 1 | 1 | 1 | 669065R | Click Here |
| 22 | Blower Housing | 1 | 1 | 1 | 1 | 297217R | Click Here |
| 23
|
Blower Motor - 056 | 1 | - | - | - | 1027351R | Click Here |
| Blower Motor - 070 | - | 1 | - | - | 1027352R | Click Here | |
| Blower Motor - 077 | - | - | 1 | - | 1027353R | Click Here | |
| Blower Motor - 090 | - | - | - | 1 | 1027354R | Click Here | |
| 24 | Motor Mount - Kit (C unit) | 1 | 1 | 1 | 1 | 903489 | Click Here |
| 25 | Choke - Blower Motor | 1 | 1 | 1 | 1 | 622340R | Click Here |
| 26 | Auxilillary Line | - | - | - | - | - | |
| 27
|
Burner - (less Orifice) | 1 | 1 | 1 | 1 | 903406 | Click Here |
| Burner Spud - (Not Shown) | 1 | 1 | 1 | 1 | 663699R | Click Here | |
| 28 | Gasket Kit | 1 | 1 | 1 | 1 | 730534R | Click Here |
| 29
|
Orifice - LP Gas (Not Shown) | 1 | - | - | - | 661045R | Click Here |
| Orifice - LP Gas (Not Shown) | - | 1 | - | - | 661042R | Click Here | |
| Orifice - LP Gas (Not Shown) | - | - | 1 | - | 661040R | Click Here | |
| Orifice - LP Gas (Not Shown) | - | - | - | 1 | 661036R | Click Here | |
| Orifice - Natural Gas (Not Shown) | 1 | - | - | - | 661029R | Click Here | |
| Orifice - Natural Gas (Not Shown) | - | 1 | - | - | 661024R | Click Here | |
| Orifice - Natural Gas (Not Shown) | - | - | 1 | - | 661021R | Click Here | |
| Orifice - Natural Gas (Not Shown) | - | - | - | 1 | 661017R | Click Here | |
| 30 | Fuse - 3 Amp (Not Shown) | 1 | 1 | 1 | 1 | 632261R | Click Here |
| 31 | Elbow - Assembly (Not Shown) | 1 | 1 | 1 | 1 | 624612R | Click Here |
| 32 | Close-Off Plate - (Left) | 1 | 1 | 1 | 1 | 355480R | Click Here |
| 33 | Close-Off Plate - (Right) | 1 | 1 | 1 | 1 | 355490R | Click Here |
| 34 | Coil Door - (White) | 1 | 1 | 1 | 1 | 903094 | Click Here |
| 35 | Baffle Kit - Combustion Air | 1 | 1 | 1 | 1 | 903722 | Click Here |
