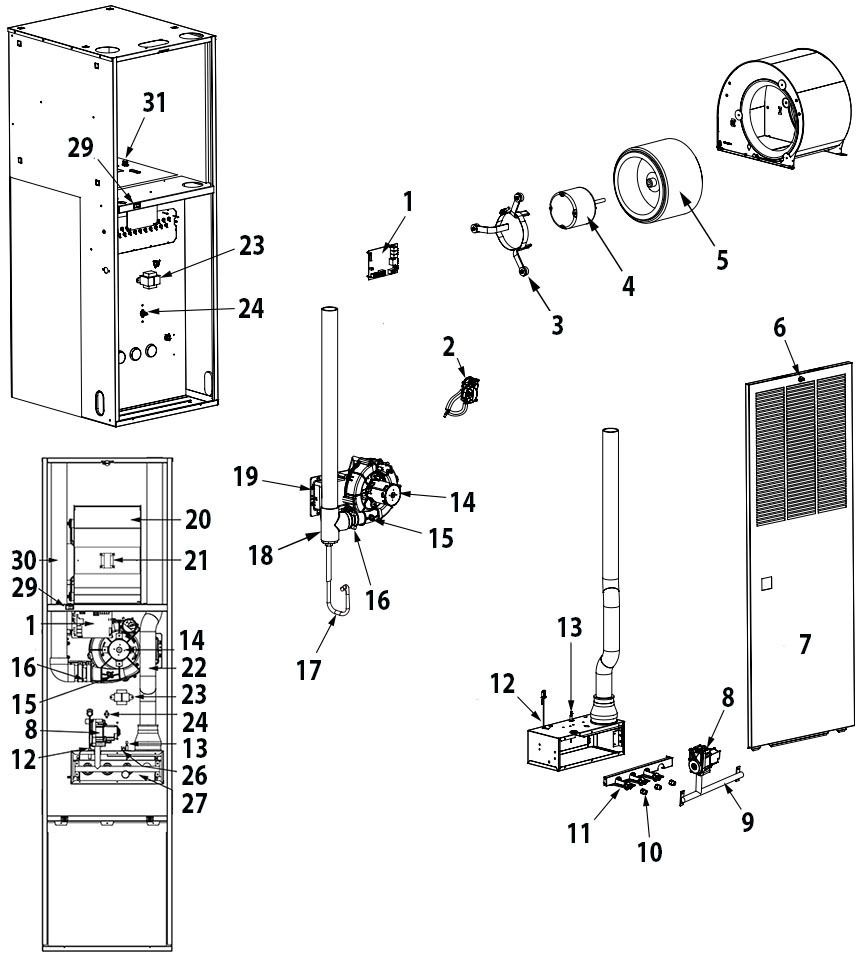

MG2R Parts
| #
|
DESCRIPTION
|
MG2R | MFG#
|
Link
|
|||||
| 045F | 045T | 060F | 060T | 072F | 072T | ||||
| 1 | Control Board | 1 | 1 | 1 | 1 | 1 | 1 | 1021573R | Click Here |
| 2 | Pressure Switch | 1 | 1 | 1 | 1 | 1 | 1 | 632492R | Click Here |
| 3 | Mount Kit - Blower Motor |
1 | 1 | 1 | 1 | 1 | 1 | 904951 | Click Here |
| 4 | Blower Motor | 1 | 1 | 1 | 1 | 1 | 1 | 1028500R | Click Here |
| 5 | Blower Wheel | 1 | 1 | 1 | 1 | 1 | 1 | 667258R | Click Here |
| 6 | Latch - Door | 1 | 1 | 1 | 1 | 1 | 1 | 618107R | Click Here |
| 7
|
Door Assembly | 1 | - | 1 | - | 1 | - | 903977 | Click Here |
| Door Assembly | - | 1 | - | 1 | - | 1 | 904049 | Click Here | |
| Filter - (Not Shown) | 1 | - | 1 | - | 1 | - | 669363R | Click Here | |
| 8 | Gas Valve | 1 | 1 | 1 | 1 | 1 | 1 | 903596 | Click Here |
| 9 | Manifold - Burner Tube | 1 | 1 | 1 | 1 | 1 | 1 | 664640R | Click Here |
| 10
|
Orifice - (LP Gas) | 1 | 1 | - | - | - | - | 661057R | Click Here |
| Orifice - (LP Gas) | - | - | 1 | 1 | - | - | 661055R | Click Here | |
| Orifice - (LP Gas) | - | - | - | - | 1 | 1 | 661056R | Click Here | |
| Orifice - (Natural Gas) | 1 | 1 | - | - | 1 | 1 | 661047R | Click Here | |
| Orifice - (Natural Gas) | - | - | 1 | 1 | - | - | 661045R | Click Here | |
| 11 | Burner - Inshot | 1 | 1 | 1 | 1 | 1 | 1 | 661135R | Click Here |
| 12 | Ignitor | 1 | 1 | 1 | 1 | 1 | 1 | 1016290S | Click Here |
| 13 | Sensor - Flame | 1 | 1 | 1 | 1 | 1 | 1 | 903600 | Click Here |
| 14
|
Inducer Motor - With Gasket |
1 | 1 | 1 | 1 | 1 | 1 | 921494 | Click Here |
| Inducer Orifice - (Not Shown) |
1 | 1 | 1 | 1 | 1 | 1 | 669712R | Click Here | |
| 16 | Drain Assembly - Inline | 1 | 1 | 1 | 1 | 1 | 1 | 664435R | Click Here |
| 17
|
Drain Tube - (Hard "J") | 1 | 1 | 1 | 1 | 1 | 1 | 663706R | Click Here |
| Drain Tube - (Soft 23") (Not Shown) |
1 | 1 | 1 | 1 | 1 | 1 | 664434R | Click Here | |
| 18 | Vent Tee | 1 | 1 | 1 | 1 | 1 | 1 | 618060R | Click Here |
| 19 | Header Box - Outlet | 1 | 1 | 1 | 1 | 1 | 1 | 904802 | Click Here |
| 20 | Blower Assembly | - | - | - | - | - | - | - | |
| 21 | Motor Choke | 1 | 1 | 1 | 1 | 1 | 1 | 622340R | Click Here |
| 22 | Air Pipe - Combustion | - | - | - | - | - | - | - | |
| 23 | Transformer | 1 | 1 | 1 | 1 | 1 | 1 | 622341R | Click Here |
| 24 | Limit Switch - Main Air | 1 | 1 | 1 | 1 | 1 | 1 | 626598R | Click Here |
| 26 | Limit Switch - Roll Out | 1 | 1 | 1 | 1 | 1 | 1 | 626608R | Click Here |
| 27 | Burner Assembly - Gas Manifold |
1 | 1 | 1 | 1 | 1 | 1 | 664640R | Click Here |
| 28 | View Port - Burner (Not Shown) |
1 | 1 | 1 | 1 | 1 | 1 | 632216R | Click Here |
| 29 | Switch - Door | 1 | 1 | 1 | 1 | 1 | 1 | 632337R | Click Here |
| 30 | Vent Pipe | - | - | - | - | - | - | - | |
| 31 | Limit Switch - Blower Deck |
1 | 1 | 1 | 1 | 1 | 1 | 626602R | Click Here |
| 32 | Door Assembly - Coil (Not Shown) |
1 | 1 | 1 | 1 | 1 | 1 | 903094 | Click Here |
| 33 | Fuse - (Not Shown) | 1 | 1 | 1 | 1 | 1 | 1 | 632261R | Click Here |
| 34 | Heat Exchanger - (Not Shown) |
1 | 1 | 1 | 1 | 1 | 1 | 921598 | Click Here |
