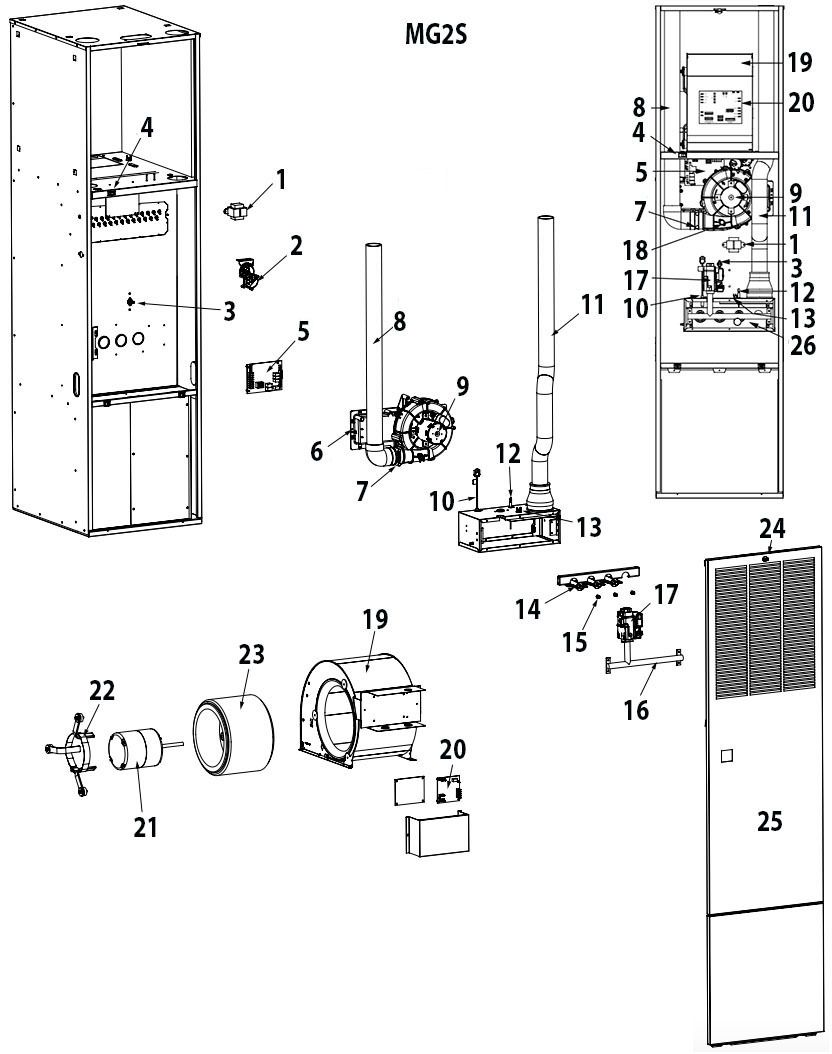

MG2S Parts
| #
|
DESCRIPTION
|
MG2S | MFG#
|
Link
|
|||||
| 045F | 045T | 060F | 060T | 072F | 072T | ||||
| 1 | Transformer | 1 | 1 | 1 | 1 | 1 | 1 | 622341R | Click Here |
| 2 | Switch - Pressure | 1 | 1 | 1 | 1 | 1 | 1 | 1023971R | Click Here |
| 3 | Limit Switch - Main Air | 1 | 1 | 1 | 1 | 1 | 1 | 1018472R | Click Here |
| 4 | Switch - Door | 1 | 1 | 1 | 1 | 1 | 1 | 632337R | Click Here |
| 5 | Control Board | 1 | 1 | 1 | 1 | 1 | 1 | 624790R | Click Here |
| 6 | Header Box - Outlet | 1 | 1 | 1 | 1 | 1 | 1 | 904802 | Click Here |
| 7 | Drain Assembly - Inline | 1 | 1 | 1 | 1 | 1 | 1 | 664435R | Click Here |
| 8 | Vent Pipe | 1 | 1 | 1 | 1 | 1 | 1 | 664644R | Click Here |
| 9
|
Inducer Motor - w/Orifice | 1 | 1 | 1 | 1 | 1 | 1 | 1025335 | Click Here |
| Inducer Orifice - (Not Shown) |
1 | 1 | 1 | 1 | 1 | 1 | 1021493R | Click Here | |
| 10 | Ignitor | 1 | 1 | 1 | 1 | 1 | 1 | 1016290S | Click Here |
| 11 | Inlet Pipe - Combustion Air |
1 | 1 | 1 | 1 | 1 | 1 | 664645R | Click Here |
| 12 | Sensor - Flame | 1 | 1 | 1 | 1 | 1 | 1 | 632396R | Click Here |
| 13 | Limit Switch - Roll Out | 1 | 1 | 1 | 1 | 1 | 1 | 626608R | Click Here |
| 14 | Burner - Inshot | 1 | 1 | 1 | 1 | 1 | 1 | 661135R | Click Here |
| 15
|
Orifice - (LP Gas) | 1 | 1 | 1 | 1 | 1 | 1 | 661079R | Click Here |
| Orifice - (Natural Gas) | 1 | 1 | - | - | 1 | 1 | 661047R | Click Here | |
| Orifice - (Natural Gas) | - | - | 1 | 1 | - | - | 661045R | Click Here | |
| 16 | Manifold - Burner Tube | 1 | 1 | 1 | 1 | 1 | 1 | 664640R | Click Here |
| 17 | Gas Valve | 1 | 1 | 1 | 1 | 1 | 1 | 624787R | Click Here |
| 18 | Limit Switch - Inducer | 1 | 1 | 1 | 1 | 1 | 1 | 626599R | Click Here |
| 19 | Blower Assembly | 1 | 1 | 1 | 1 | 1 | 1 | 1022912R | Click Here |
| 20 | Control Board - Motor | 1 | 1 | 1 | 1 | 1 | 1 | 624840R | Click Here |
| 21 | Blower Motor | 1 | 1 | 1 | 1 | 1 | 1 | 622684R | Click Here |
| 22 | Mount Kit - Blower Motor | 1 | 1 | 1 | 1 | 1 | 1 | 904951 | Click Here |
| 23 | Blower Wheel | 1 | 1 | 1 | 1 | 1 | 1 | 667258R | Click Here |
| 24
|
Latch - Door | 1 | 1 | 1 | 1 | 1 | 1 | 618107R | Click Here |
| Fastener - Door Latch | 1 | 1 | 1 | 1 | 1 | 1 | 606317R | Click Here | |
| 25
|
Door Assembly- (Louvered)(BW Models) |
1 | - | 1 | - | 1 | - | 922094 | Click Here |
| Door Assembly - (Non- Louvered)(BWT Models) |
- | 1 | - | 1 | - | 1 | 922095 | Click Here | |
| Filter - (BWT Models) | - | 1 | - | 1 | - | 1 | 669779R | Click Here | |
| 26 | Burner Box - Assembly | 1 | 1 | 1 | 1 | 1 | 1 | 1022918R | Click Here |
| 27 | View Port - Burner (Not Shown) |
1 | 1 | 1 | 1 | 1 | 1 | 632216R | Click Here |
| 28 | Fuse - (Not Shown) | 1 | 1 | 1 | 1 | 1 | 1 | 632261R | Click Here |
| 29
|
Drain Tube - (Hard "J") (Not Shown) |
1 | 1 | 1 | 1 | 1 | 1 | 663706R | Click Here |
| Drain Tube - (Soft 23") (Not Shown) |
1 | 1 | 1 | 1 | 1 | 1 | 664434R | Click Here | |
| 30 | Drain Tee - (Not Shown) | 1 | 1 | 1 | 1 | 1 | 1 | 618060R | Click Here |
| 31 | Door Assembly - Coil (Not Shown) |
1 | 1 | 1 | 1 | 1 | 1 | 903094 | Click Here |
| 31 | Heat Exchanger - (Not Shown) |
1 | 1 | 1 | 1 | 1 | 1 | 921598 | Click Here |
| 32 | Hose - High Temp (Not Shown) |
1 | 1 | 1 | 1 | 1 | 1 | 263967R | Click Here |
