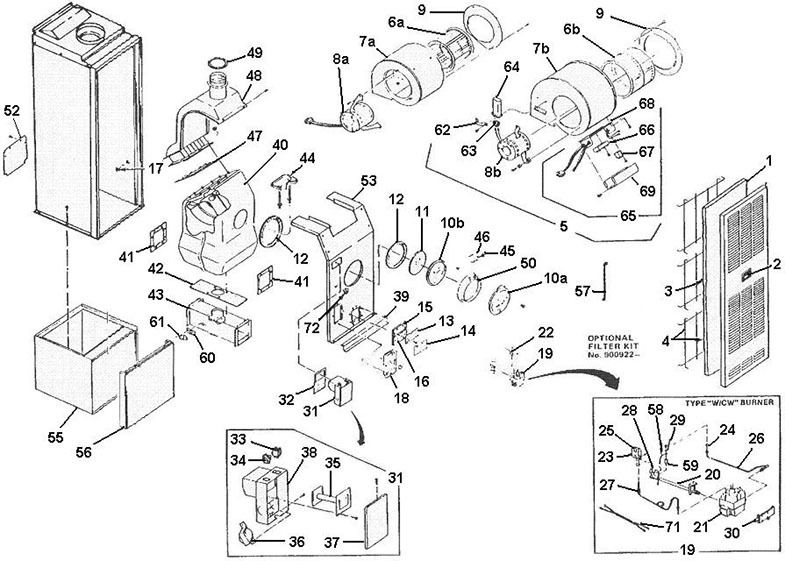

MGH/MGB 100 Parts
| # | DESCRIPTION | MFG # | Link |
| 1 | Door - Outer (Includes Handle - Specify Gray) | 901677 | Click Here |
| 2
|
Handle - Door (Intertherm) | 668739 | Click Here |
| Handle - Door (Miller) | 668740 | Click Here | |
| 3
|
Filter - Furnace | 688356 | Click Here |
| Filter Kit - (Includes filter and three retainers) | 925056 | Click Here | |
| 4 | Retainer - Filter - Optional (Includes Mounting Brackets) | 900922 | Click Here |
| 5 | Blower Assembly - Multi-Speed (Includes 6b-8b, 9 & 62 thru 69) | 911030 | Click Here |
| 6a | Wheel - Blower 10" x 8" (MGH/MGH-C) | 667037 | Click Here |
| 6b | Wheel - Blower 10" x 8" (MGB) | 667060 | Click Here |
| 7a | Housing Assembly - Blower (MGH/MGH-C) | 422690 | Click Here |
| 7b | Housing Assembly - Blower (MGB) | 437860 | Click Here |
| 8a | Motor - Blower (MGH) | 901377 | Click Here |
| 8b | Motor - Blower (MGB) | 620699 | Click Here |
| 9 | Plate - Blower Orifice | 311220 | Click Here |
| 10a | Door - Fire (MGH/MGB) | 331070 | Click Here |
| 10b | Panel - Access (MGH-C) | 313380 | Click Here |
| 11 | Door - Fire (MGH-C) | 312250 | Click Here |
| 12 | Gasket - Fire Door - 2 | 688096 | Click Here |
| 13 | Cover - Upper | 226063 | Click Here |
| 14 | Cover - Lower | 223170 | Click Here |
| 15 | Gasket - Upper Cover | 688710 | Click Here |
| 16 | Gasket - Lower Cover | 688489 | Click Here |
| 17 | Bushing | 631320 | Click Here |
| 18 | Plate - Assembly | 216710 | Click Here |
| 19
|
Burner - Assembly Nat. (Type "W" U.S.A.) | 901348 | Click Here |
| Burner - Assembly Nat. (Type "CW" Canadian) | 346190 | Click Here | |
| Burner - Assembly L.P. (Type "CW" Canadian) | 346180 | Click Here | |
| 20 | Tube - Burner (Type "CW") | 230660 | Click Here |
| 21
|
Control - Gas (Type "W" U.S.A.) | 624370 | Click Here |
| Control - Gas (Unitrol Replacement) | 624370 | Click Here | |
| 22 | Bracket - Burner Assembly (Type "CW") | 130870 | Click Here |
| 23 | Pilot | 660393 | Click Here |
| 24
|
Orifice - Pilot - Nat. BCR 18 | 660153 | Click Here |
| Orifice - Pilot - L.P. BBR 10 | 660149 | Click Here | |
| 25 | Shield - Pilot | 218370 | Click Here |
| 26 | Tube - Pilot (Type "W/CW") | 340480 | Click Here |
| 27 | Thermocouple | 631120 | Click Here |
| 28
|
Orifice - Main Burner - Nat. (U.S.A.) #12 | 660535 | Click Here |
| Orifice - Main Burner - L.P. (U.S.A.) #33 | 660542 | Click Here | |
| Orifice - Main Burner - Nat. (Canadian) | 660552 | Click Here | |
| Orifice - Main Burner - L.P. (Canadian) | 660553 | Click Here | |
| 29 | Electrode - (MGH-C) | 631249 | Click Here |
| 30 | Igniter - (MGH-C) | 631248 | Click Here |
| 31
|
Assembly - Control Panel - (Items 32 thru 38 MGH/MGB) | 437640 | Click Here |
| Assembly - Control Panel - (Items 32 thru 38 MGH-C) | 437650 | Click Here | |
| 32 | Insulation - Control Panel | 688072 | Click Here |
| 33
|
Switch - ON/OFF/Fan - Manual 3-Position | 631947 | Click Here |
| Switch - ON/OFF/Fan - Automatic 2-Pos. (2 Wire A/C Blwr) | 631677 | Click Here | |
| 34 | Receptacle - Blower | 631744 | Click Here |
| 35 | Control - Fan & Limit | 626185 | Click Here |
| 36 | Transformer | 620825 | Click Here |
| 37 | Cover - Control Panel | 228560 | Click Here |
| 38 | Assembly - Control Panel | 437603 | Click Here |
| 39 | Plate - Close-Off (Damper) | 223030 | Click Here |
| 40
|
Exchanger - Heat (MGH/MGB) Flanged | 446100 | Click Here |
| Exchanger - Heat (MGH-C) | 414540 | Click Here | |
| 41 | Gasket - Combustion Air Chamber - 2 | 688097 | Click Here |
| 42 | Gasket - Top-Combustion Air Duct | 688105 | Click Here |
| 43 | Duct - Combustion Air | 432270 | Click Here |
| 44 | Burner - Target | 208620 | Click Here |
| 45 | Spring - Fire Door | 688427 | Click Here |
| 46 | Pin - Hinge - Fire Door | 668426 | Click Here |
| 47 | Gasket - Riser Plate | 688104 | Click Here |
| 48 | Radiator | 410980 | Click Here |
| 49 | Gasket - Flue Pipe | 688103 | Click Here |
| 50 | Extension - Fire Door | 309841 | Click Here |
| 51 | - | ||
| 52 | Plate - Back | 207870 | Click Here |
| 53
|
Panel - Air Casing (-100AA/AB) | 444410 | Click Here |
| Panel - Air Casing (1100AAC) | 445930 | Click Here | |
| 54 | - | ||
| 55 | Cabinet - Coil - Gray | 911949 | Click Here |
| 56 | Panel - Outer - Gray | 911947 | Click Here |
| 57 | Rod - Pilot Lighter (MGH/MGB) | 618020 | Click Here |
| 58 | Wire | 631769 | Click Here |
| 59 | Insulator - Stand Off (MGH-C) | 631602 | Click Here |
| 60 | Gasket - Limit | 688261 | Click Here |
| 61 | Limit - Control | 626165 | Click Here |
| 62 | Strap - Capacitor | 118380 | Click Here |
| 63 | Boot - Capacitor | 631330 | Click Here |
| 64 | Capacitor - 10MFD-370 V | 620233 | Click Here |
| 65 | Complete Control Box Assembly - (Includes Items 66 thru 69) | 340150 | Click Here |
| 66 | Board - Terminal | 631944 | Click Here |
| 67 | Relay | 620537 | Click Here |
| 68 | Box - Circuit | 340170 | Click Here |
| 69 | Cover - Circuit Box | 230110 | Click Here |
| 70 | Lead - (For Use w/624464 - Type "CW") | 624469 | Click Here |
| 71 | Lead - (For Use w/624466 - Type "CW") | 141200 | Click Here |
| 72 | Fuse - Thermal (141*C Type "CW") | 632011 | Click Here |
