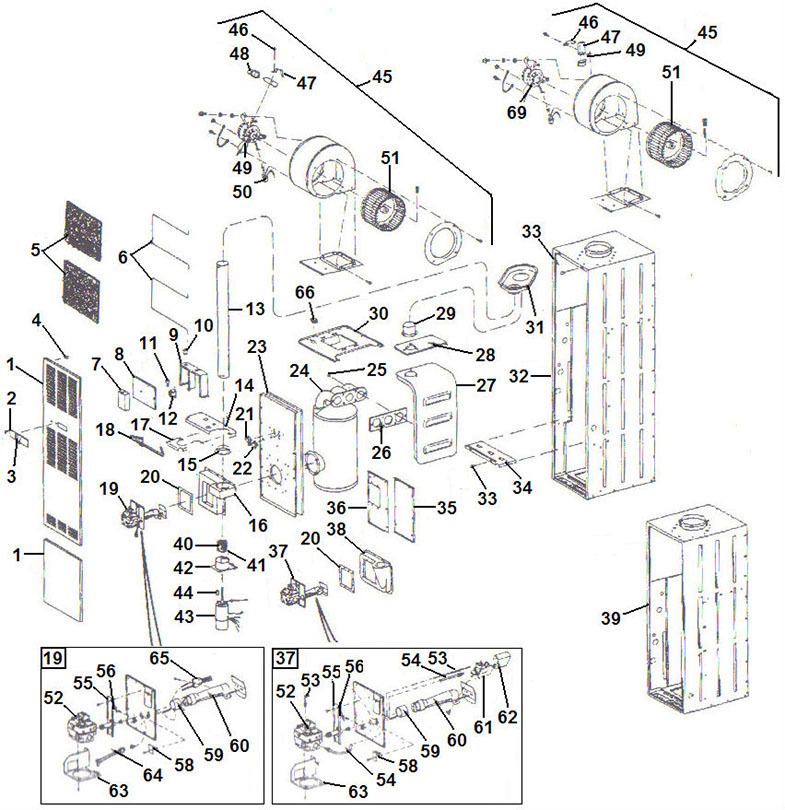

MGHA/MMHA 1st Production Parts
| #
|
DESCRIPTION
|
MGHA | MMHA | MFG#
|
Link
|
|||||||||
| 56 | 66 | 70 | 75 | 90 | 90 PQ |
56 | 66 | 70 | 75 | 90 | ||||
| 1
|
Door - Louvered (w/2-Door Latches) | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 902004 | Click Here |
| Door - Coil (AB Model) Incl. 2-Door Latch |
1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 902005 | Click Here | |
| 2
|
Plate - Name (Miller) | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 687013 | Click Here |
| Plate - Name (Intertherm) | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 687012 | Click Here | |
| 3 | Door Insert - Decorative | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 668772 | Click Here |
| 4 | Latch - Door | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 668420 | Click Here |
| 5 | Filter - Air | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 668780 | Click Here |
| 6 | Retainer - Air Filter | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 668788 | Click Here |
| 7 | HSI Control | 1 | 1 | 1 | 1 | 1 | 626333 | Click Here | ||||||
| 8 | Cover - Control Box | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 246710 | Click Here |
| 9 | Control Box | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 355390 | Click Here |
| 10 | Switch - SPDT | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 631947 | Click Here |
| 11 | Cap Pin | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 631728 | Click Here |
| 12
|
Transformer | 1 | 1 | 1 | 1 | 1 | 1 | 621094 | Click Here | |||||
| Transformer | 1 | 1 | 1 | 1 | 1 | 621096 | Click Here | |||||||
| 13 | Pipe - Fresh Air 4" | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 356271 | Click Here |
| 14 | Shelf Divider | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 355500 | Click Here |
| 15 | Collar | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 246850 | Click Here |
| 16 | Air Box - Lower | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 461120 | Click Here | ||||
| 17 | Divider - Close-Off Shelf | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 247360 | Click Here |
| 18 | Tape - Foam | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 688877 | Click Here |
| 19 | Burner - HSI/56-90,000
(Less Main Orifice) |
1 | 1 | 1 | 1 | 1 | 902651 | Click Here | ||||||
| 20 | Gasket - Valve | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 689009 | Click Here |
| 21
|
Limit - 160*F Open/40*F Diff. | 1 | 1 | 1 | 1 | 626336 | Click Here | |||||||
| Limit - 155*F Close/40*F Diff
|
1 | 1 | 1 | 1 | 1 | 626341 | Click Here | |||||||
| Limit - 140*F Open/40*F Diff.
|
1 | 1 | 626279 | Click Here | ||||||||||
| 22 | Fan Limit -115 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 626337 | Click Here |
| 23 | Air Casing - Front | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 458230 | Click Here |
| 24
|
Incl. 2 Pipe Heat Exchanger Assy. 464760 Plus Item 26 Gasket |
1 | 1 | 1 | 1 | 1 | 1 | 1 | 902032 | Click Here | ||||
| Incl. 3 Pipe Heat Exchanger Assy.
465020 Plus Item 26 Gasket |
1 | 902033 | Click Here | |||||||||||
| Incl. 3 Pipe Heat Exchanger Assy.
464770 Plus Item 26 Gasket |
1 | 1 | 1 | 902034 | Click Here | |||||||||
| 25 | Nut - 1/4 - 20 (6 Req'd) | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 606005 | Click Here |
| 26 | Gasket - Radiator Plate | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 689050 | Click Here |
| 27
|
Incl. Radiator Assy. 464830 Plus Items 28,29 and 26 |
1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 902036 | Click Here |
| Heat Exchanger and Radiator Assy. | 1 | 1 | 1 | 1 | 1 | 1 | 902758 | Click Here | ||||||
| Heat Exchanger and Radiator Assy.
|
1 | 1 | 902760 | Click Here | ||||||||||
| Heat Exchanger and Radiator Assy.
|
1 | 1 | 902759 | Click Here | ||||||||||
| 28 | Heat Exchanger Insulation | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 689050 | Click Here |
| 29 | Flue Pipe - Upper | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 355070 | Click Here |
| 30 | Air Casing - Top | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 462570 | Click Here |
| 31 | Air Box - Upper | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 458740 | Click Here |
| 32 | Cabinet - (AB Models) | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 458370 | Click Here |
| 33 | Strike - Door | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 668421 | Click Here |
| 34 | Shelf - (AB Models) | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 355050 | Click Here |
| 35 | Coil Close-Off - Right (AB Models) | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 355490 | Click Here |
| 36 | Coil Close-Off - Left (AB Models) | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 355480 | Click Here |
| 37 | Burner - (56,000-90,000) Less Main Orifice |
1 | 1 | 1 | 1 | 1 | 1 | 902007 | Click Here | |||||
| 38 | Air Box - Lower | 1 | 1 | 1 | 1 | 458750 | Click Here | |||||||
| 39 | Cabinet Assembly | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 458360 | Click Here |
| 40
|
Wheel - Combustion
|
1 | 1 | 667186 | Click Here | |||||||||
| Wheel - Combustion
|
1 | 1 | 1 | 1 | 667187 | Click Here | ||||||||
| 41 | Scroll | 1 | 1 | 1 | 1 | 1 | 1 | 355510 | Click Here | |||||
| 42 | Plate - Mounting | 1 | 1 | 1 | 1 | 1 | 1 | 355860 | Click Here | |||||
| 43 | Motor - Combustion
|
1 | 1 | 1 | 1 | 1 | 1 | 621080 | Click Here | |||||
| 44 | Grommet | 1 | 1 | 1 | 1 | 1 | 668785 | Click Here | ||||||
| 45
|
Blower Assembly - (56,000) | 1 | 1 | 902008 | Click Here | |||||||||
| Blower Assembly - (66,000)
|
1 | 1 | 902009 | Click Here | ||||||||||
| Blower Assembly - (70,000, 75,000)
|
1 | 1 | 1 | 1 | 902010 | Click Here | ||||||||
| Blower Assembly - (90,000)
|
1 | 1 | 1 | 902011 | Click Here | |||||||||
| 46 | Strap - Capacitor | 1 | 1 | 1 | 118380 | Click Here | ||||||||
| 47 | Capacitor - 10 MFD 370V
|
1 | 1 | 1 | 620233 | Click Here | ||||||||
| 48 | Boot - Capacitor | 1 | 1 | 1 | 631330 | Click Here | ||||||||
| 49
|
Motor - (56,000) 1/8 HP | 1 | 1 | 901872 | Click Here | |||||||||
| Motor - (66,000, 70,000, 75,000)
1/5 HP |
1 | 1 | 1 | 1 | 1 | 1 | 901873 | Click Here | ||||||
| Motor - (90,000) 1/4 HP
|
1 | 1 | 1 | 901874 | Click Here | |||||||||
| 50 | Plug - Circuit | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 631724 | Click Here | |
| 51
|
Blwr Wheel - (56,000, 66,000) 9 x 7 | 1 | 1 | 1 | 1 | 667149 | Click Here | |||||||
| Blwr Wheel - (70,000, 75,000, 90,000)
10 x 8 |
1 | 1 | 1 | 1 | 1 | 1 | 1 | 667037 | Click Here | |||||
| 52
|
Gas Valve | 1 | 1 | 1 | 1 | 1 | 1 | 624491 | Click Here | |||||
| Gas Valve - (HSI) | 1 | 1 | 1 | 1 | 1 | 624490 | Click Here | |||||||
| 53 | Thermocouple | 1 | 1 | 1 | 1 | 1 | 1 | 631132 | Click Here | |||||
| 54 | Pilot Tube | 1 | 1 | 1 | 1 | 1 | 1 | 247620 | Click Here | |||||
| 55 | Spud Plate | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 247690 | Click Here |
| 56
|
Orifice - Natural Gas (56,000) Drill #29 | 1 | 1 | 660615 | Click Here | |||||||||
| Orifice - Natural Gas (66,000) Drill #26
|
1 | 1 | 660580 | Click Here | ||||||||||
| Orifice - Natural Gas (70,000) Drill #23
|
1 | 1 | 660800 | Click Here | ||||||||||
| Orifice - Natural Gas (75,000) Drill #22
|
1 | 1 | 660581 | Click Here | ||||||||||
| Orifice - Natural Gas (90,000) Drill #17
|
1 | 1 | 1 | 660582 | Click Here | |||||||||
| Orifice - PG (56,000)(**NS) Drill #45 | 1 | 1 | 660583 | Click Here | ||||||||||
| Orifice - LPG (66,000)(**NS) Drill #43
|
1 | 1 | 660584 | Click Here | ||||||||||
| Orifice - LPG (70,000)(**NS) Drill #42
|
1 | 1 | 660799 | Click Here | ||||||||||
| Orifice - LPG (75,000)(**NS) Drill #41
|
1 | 1 | 660585 | Click Here | ||||||||||
| Orifice - LPG (90,000)(**NS) Drill #36
|
1 | 1 | 1 | 660586 | Click Here | |||||||||
| 57 | Plate - Burner | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 247650 | Click Here |
| 58 | Cover - Tube | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 247640 | Click Here |
| 59 | Air Shutter | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 247660 | Click Here |
| 60 | Venturi | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 356140 | Click Here |
| 61 | Burner - Pilot | 1 | 1 | 1 | 1 | 1 | 1 | 660575 | Click Here | |||||
| 62 | Shield - Pilot | 1 | 1 | 1 | 1 | 1 | 1 | 247630 | Click Here | |||||
| 63 | Support - Valve | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 247610 | Click Here |
| 64 | Pin Plug - Ignightor
|
1 | 1 | 1 | 1 | 1 | 250030 | Click Here | ||||||
| 65 | Ignightor | 1 | 1 | 1 | 1 | 1 | 632088 | Click Here | ||||||
| 66 | Limit - 140 deg Open/Manual Re-set | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 626340 | Click Here |
| 67 | Rod - Pilot Burner (Not Shown) | 1 | 1 | 1 | 1 | 1 | 1 | 618020 | Click Here | |||||
| 68 | Complete Blower - 1.5 - 3.5 Top Cooling, Multi-Sp. (Incl Items 46-48, 69,51) |
1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 901998 | Click Here |
| 69 | Motor - 1/3 HP (A/C Motor) | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 901875 | Click Here |
| 70 | Piezo Ignightor Kit - (Optional)(NS**) | 1 | 1 | 1 | 1 | 1 | 901997 | Click Here | ||||||
| 71 | Relay | 1 | 660190 | Click Here | ||||||||||
| ? | Pilot Orifice - .014 LP/N
|
660791 | Click Here | |||||||||||
